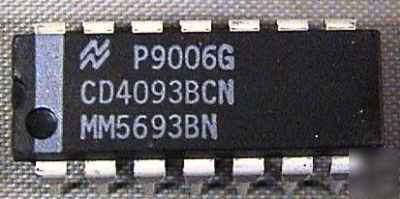

> CD4093BCN national 14PIN dip( tube of 25 pcs)
CD4093BCN national 14PIN dip( tube of 25 pcs)
The CD4093B consists of four Schmitt-trigger circuits. Each
circuit functions as a 2-input NAND gate with Schmitt-trigger
action on both inputs. The gate switches at different points
for positive and negative-going signals. The difference between
the positive (VTa) and the negative voltage (VTb) is
defined as hysteresis voltage (VH).
All outputs have equal source and sink currents and conform
to standard B-series output drive (see Static Electrical
Y Wide supply voltage range 3.0V to 15V
Y Schmitt-trigger on each input
Y Noise immunity greater than 50%
Y Equal source and sink currents
Y No limit on input rise and fall time
Y Standard B-series output drive
Y Hysteresis voltage (any input) TA e 25 C
Y High-noise-environment systems
