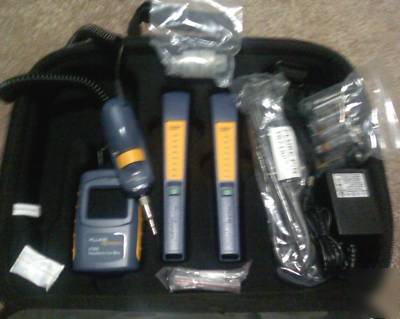

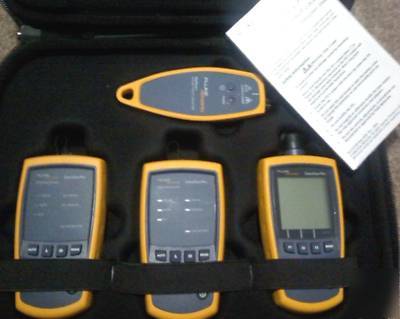

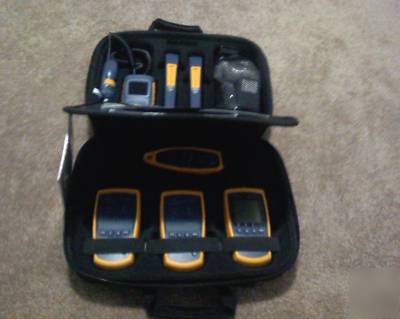

Fluke 1450 simplifiber pro complete verification kit
O p t i c a l P o w e r M e t e r a n d F i b e r Te s t K i t s:

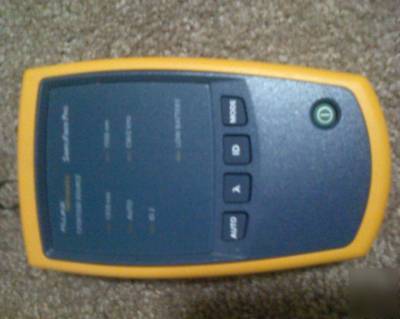

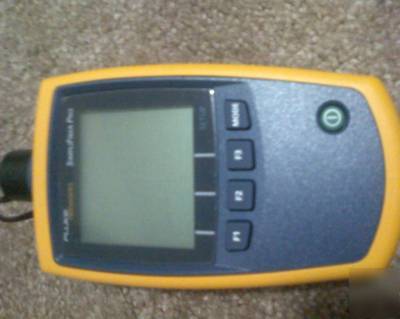

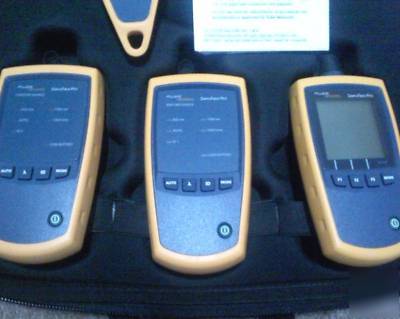

SimpliFiber Pro is a product suite that allows you to match products and functionality to your needs. SimpliFiber Pro is made up of four unique fiber platforms: the power meter, the multimode source, the singlemode source, and the FindFiber
TM Remote ID source. Each platform has uniquely competitive features, bundled in convenient kits, to meet the needs of today s technicians.
Tests multimode and singlemode fiber
Measures optical power and loss at 850 nm
and 1300 nm using the 850/1300 source
Measures optical power and loss at
1310/1550 source; calibrated wavelengths
in the power meter at 1490 nm and
1625 nm also allow for readings from

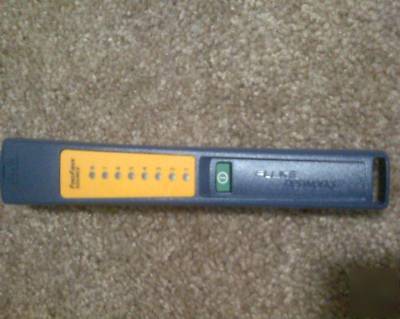

Offers quick remote identification of
cabling runs with FindFiber Remote IDs
Conduct pre-testing and qualify
Auto-senses source wavelength
Single port testing for simple network
Ruggedly built for demanding field use

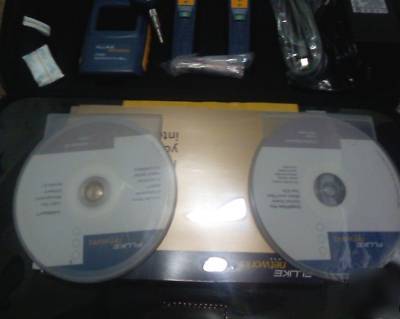

LinkWare Cable Test Management
Software documents, reports, and
Temperature range Operating: -10
Certifications CE, CSA, N10140, Class 1 laser-safe
Dimensions Power meter: 6.4 in x 3.2 in x 1.5 in
MM/SM sources: 5.6 in x 3.2 in x 1.6 in
Weight Power meter: 11.5 oz (325 g)
Optical output connector Fixed SC
Emitter wavelengths 850, 1300, 1310, 1490, 1550, 1625
Power measurement accuracy +/-0.25 dB
Optical connector Removable adapter; SC adapter standard;
Optional adapters include LC, ST
Calibrated wavelengths 850, 1300, 1310, 1490, 1550, 1625
Power measurement range 850: 10 to -52 dBm
1300, 1310, 1490, 1550, 1625: 10 to -60
Power measurement linearity 850 nm: +/- 0.2 dB; +/- 0.2 dB for power
from 0 dBm to -45 dBm, +/- 0.25 dB for
power < -45 dBm; 1300 nm, 1310 nm, 1490
nm, 1550 nm, 1625 nm: +/- 0.1 dB; +/- 0.1
dB for power from 0 dBm to -55 dBm, +/-
0.2 dB for power > 0 dBm and < -55 dBm
Battery life >50 hours typical
Memory 1000 loss or power measurements
