New verifone omni 7100 mpd terminal eth-usb ns stylus

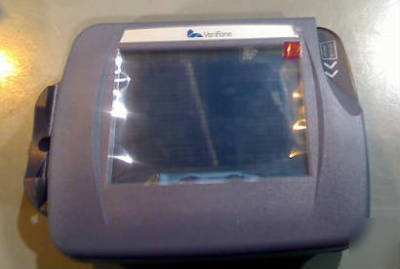

VeriFone Omni 7100 MPD Terminal ETH-USB NS Stylus NEW!!
Description: MPD Series Terminal
Processor: Motorola 68302 microprocessor
Memory: 2 MBytes of FLASH and 1 MByte of SRAM
Display: 1/4 VGA 320 x 240 pixel LCD with backlighting; 15 lines x 40 characters, including graphics
Magnetic Card Reader: Triple track (tracks 1, 2, 3), high coercivity, bi-directional
Standard I/O Configurations: Supports VeriFone multiport cables with cable sensing: (a) 1 RS-485/RS-232 port and 2 RS-232 ports; (b) 1 RS-485/RS-232 port, 1 LAN/RS-232 port, and 1 RS-232 port
Programming : Programmable in ANSI C via the TXO Workbench
Physical : Height: 146 mm (5.75 in.); width: 190 mm (7.5 in.); depth: 51 mm (2 in.); weight: 680 g (1.5 lbs.)
Environmental: 0 to 40 C (32 to 104 F) operating temperature; 10% to 80% relative humidity, non-condensing
Power Requirements: 120 VAC, 60 Hz; DC input 12 VDC, 1 Amp; Power Supply (Not Included)

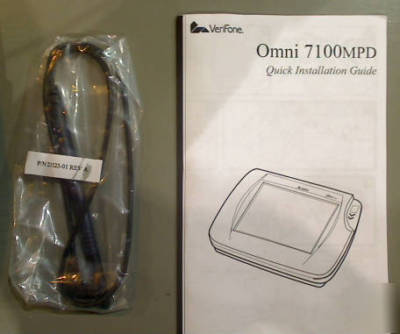

Included in Package: Verifone 7100MPD
