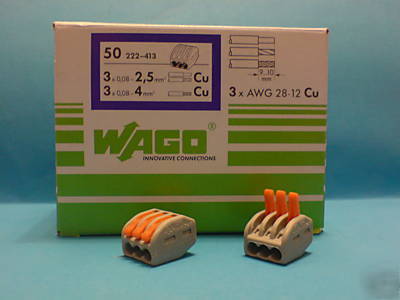

Wago 3 lever connector block terminal clamp box of 50
This listing is for a brand new box of 50 x 3 lever WAGO terminals. If you require the 2 lever version or the 5 lever version then please see my other listings.
These Wago connector blocks are made in Germany and are fanastic quality. They are very easy to use and are reusable, they save loads of time in installing, testing and fault finding.
The terminal blocks are completely unlike screw terminals. They are not susceptible to loosening due to temperature cycling, vibration or conductor settling over time. The materials used in the Wago terminal blocks are inherently corrosion resistant and exert a specific pressure onto the conductors that prevents damage to the conductors but still gives a gas tight termination every time.
The operation of these terminal blocks are very simple. The cage clamp inside the connector block is opened by using one of the integrated orange levers. Once in the open position the clamp is ready to accept the insertion of the stripped conductor. Close the lever flush with the body of the connector block and the connection is complete. To remove a conductor simply open the clamp and the connector can be reused. There is a test point in the base of the housing.
Compliant with BS7671 17th Edition
Wago connectors meet the most stringent UK and international standards including the electrical requirements of BS7671 17th Edition. Installers can be totally confident that using Wago connectors enables them to follow 'best practice' procedures and fully comply with the most up to date safety criteria.
0.08mm - 4.0mm Stranded Core
Compact Connector for Flexible Conductors
It looks like a push-wire connector for junction boxes. It is as small as a push-wire connector for junction boxes. It is protected against accidental contact like a push-wire connector for junction boxes. It has a test point like a push-wire connector for junction boxes. And yet, it can do much more:
The Compact Connectors with CAGE CLAMP COMPACT fitting can connect up to 2 stripped fine-stranded conductors with cross sections from 0.08 to 4 mm , solid or ferruled stranded wires
The closed position of the lever reliably prevents accidental unclamping of a connected wire. The additional application safety, for any type of conductor (solid, stranded, flexible), is confirmed by approvals like ENEC or UL. The ENEC mark is a European safety mark including 20 countries. ApplicationsThese compact connectors connect lighting fixture connections, blinds, sunblinds, door and door controls,
intercom wiring, pumps, loudspeaker cables and much more.
Wiring of flexible conductors in a junction box.
Lighting fixture connection with flexible conductors and power feed.
Individual design of low voltage lighting systems
Connecting pre-wired and pre-fabricated components, for example in mobile homes
* Lighting fixture connection
* Inductive proximity switches
* Actuators for floor heating
* Mobile connections (construction site)
* Supply lines for Christmas lighting
* Through wiring on lighting fixtures
* Interconnections of lighting fixture combinations
* Interconnection of gas detection and fire alarm systems
* Loudspeaker cables in living rooms
* Connection of devices and machines
* Flying leads for lighting fixtures
* Connection of zone valves in heating installations
* Connection of measuring devices
* Connection of motor valves for floor heating
* Connection of continuous rooflights
The wire can now be inserted then the lever can be returned to its rest position, flush with the terminal block housing. This reliably prevents accidental unclamping of a connected wire.
Connection: Push up lever and insert conductor . . .
. . . then push down lever to its closed position Maintenance Free
