New vacuum forming machine 48"x 48" thermoforming
FRAME OF MACHINE IS HEAVY DUTY ALUMINUM EXTRUSION
MAXIMUM FORMING AREA IS 46" X 46 "
MAXIMUM SHEET SIZE IS 48" X 48"
BOTTOM PLATEN HAS A STROKE OF 24", TOP PLATEN 30" BOTH WITH FULLY ADJUSTABLE SPEED CONTROLS AND LENGTH OF TRAVEL

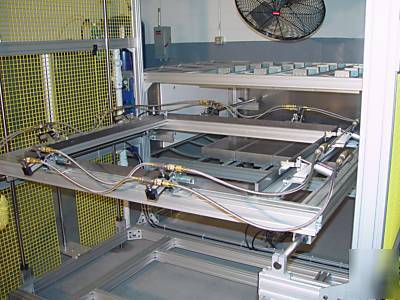

PNEUMATIC CLAMPING FRAME, FULLY ADJUSTABLE, CLAMPING BARS WITH SPRING LOADED PINS, QUICK DISCONNECTS ON LINES TO CLAMPING CYLINDERS
INFRARED ENERGY EFFICIENT CERAN GLASS HEATERS PANELS, TOP AND BOTTOM, WITH A HEAT DENSITY OF 18 WATTS PER SQUARE INCH, PLC PROVIDES SOFT START

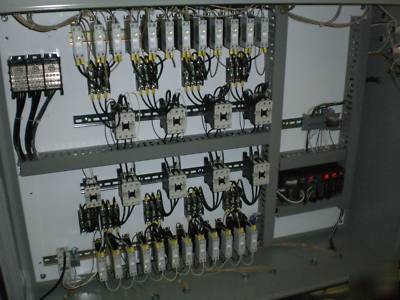

24 INDEPENDENTLY CONTROLLED HEATING ZONES , ZONES DRIVEN BY SOLID STATE RELAYS

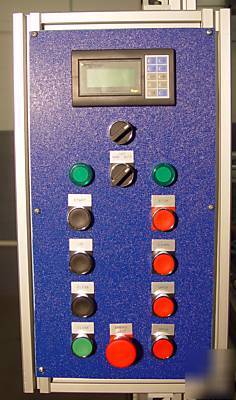

EACH FUNCTION OF THE MACHINE IS PLC CONTROLLED WITH A FRIENDLY OPERATOR INTERFACE
PLATENS AS WELL AS CLAMPING FRAMES ARE MOUNTED ON LINEAR BEARINGS THAT RIDE ON HARDENED SHAFTS
COOLING OF MATERIAL PROVIDED BY 1 4250 CFM FAN
VACUUM SYSTEM CONSISTS OF A 3HP BECKER PUMP, 120 GALLON ACCUMULATING TANK, HIGH FLOW-PILOT OPERATED 1.5" DIAMETERS VACUUM VALVES
WE INCLUDE 2 FLEXIBLE VACUUM HOSES WITH QUICK DISCONNECTS TO ATTACH TO MOLDS
INCLUDES OPERATING MANUAL, ELECTRICAL SCHEMATICS
MACHINE REQUIRES 100 AMPS, 480 VOLTS 3 PHASE POWER SUPPLY ( IF REQUIRED WE WILL WIRE 240 VOLTS 3 PHASE)
THIS IS A NEW BUILT TO ORDER MACHINE- BUILD TIME IS 4-6 WEEKS, WITH A 12 MONTH LIMITED WARRANTY
WE WILL HELP WITH TRUCKING SOURCING AND WILL LOAD ONTO TRUCK
THIS IS ANOTHER FACTORY FLOOR PROVEN SIBE AUTOMATION MACHINE
WE MANUFACTURE A FULL LINE OF THERMOFORMING MACHINES, SINGLE STATION, DOUBLE ENDERS. ETC.
