Parker suction line accumulator hvac pa-4065-9-5C

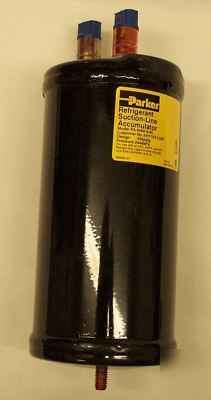

This is a new PARKER Refrigerant Suction Line Accumulator, model # PA-4065-9-5C , part # 089122-01 , made by Parker Hannifin Corp.
Diameter , 4" ; Height , 9" ; Fittings , 5/8" ODF ; LBS. R-22 , 3.8 ; Design Pressure , 355psig - 2448kPa.
The key features and benefits : Solid copper connections; "U" tube design for maximum flow of refrigerant and minimum oil entrapment; Inlet flow deflector guides refrigerant toward wall for smooth tangential flow and gradual expansion; "U" tubed entrance is positioned behind the inlet flow deflector to prevent unwanted liquid refrigerant from entering or damaging compressor; Metering orifice matched to system capacity assures optimum liquid refrigerant and oil flow to compressor; Protective screen and orifice assembly on "U" tube protects against contaminants affecting metering function; Fittings and "U" tube are matched to accumulator holding capacity and total system charge for minimum pressure drop and maximum refrigerant flow.
