Shaft alignment kit S668BZ
S668BZ STARRETT SHAFT ALIGNMENT KIT
Shaft Alignment Clamp Sets No. 668 Series
The Starrett Shaft Alignment Clamp is designed for fast, precise alignment of motors, pumps, compressors, etc. This system is capable of addressing radial and
angular misalignment problems and can be set up within minutes.
Lightweight clamp design made of black anodized aluminum
Rigid 3/8 diameter stainless steel indicator posts provided in three lengths (5, 7-7/16, and 9)
Extension plate allows for added radial clearance
Heavy-duty roller chain can accommodate up to a 7-1/2 diameter shaft
Excess roller chain can be secured to the side of the chain clamp
A second shaft alignment clamp can be mounted across from the first clamp to act as a vertical target for face alignment

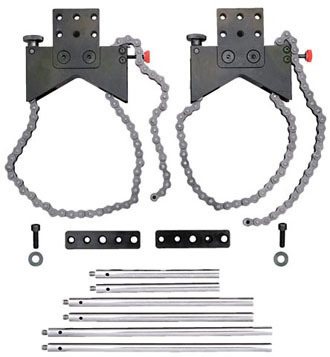

2 each: Chain Clamp, Extension Plate, Posts (5, 7-7/16, 9), S668BZ 67151
