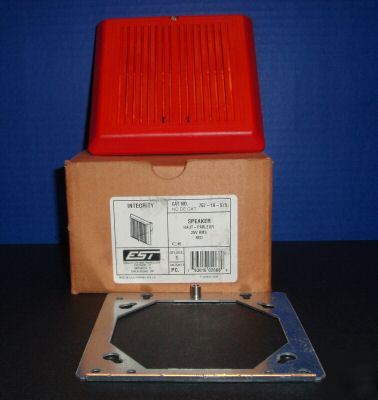

Est intergrity speaker 757-1A-S25
Integrity Speakers and Speaker-Strobes are designed for broad casting high quality, integrated, emergency voice communications, as well as alert and alarm tone signals. Use them in life safety applications, especially to notify the hearing impaired and where transitory people are expected such as in hotels, malls, airports, hospitals and other public buildings.
The 12 inch (318 mm) diameter steel baffle is finished with an attractive yet durable, high quality, baked white epoxy polyester powder-coat. The speakers flush mount to GE Security s custom QSB-108 box. The flush box is made from satin-coat steel and has flexible mounting straps for easy installation with poured concrete forms.
The flash from GE Security strobes will be noticed from almost any position in the room, corridor, or large open space. The output is controlled using a specially shaped reflector to ensure precise dispersion of the light in all viewing directions. GE Security strobes are UL1971 listed with both wall and ceiling cd intensity ratings (see Specifications). This is useful in areas where the Authority Having Jurisdiction (AHJ) permits ceiling mount strobes.
Integrity Speakers and Speaker-Strobes are designed for broadcasting high quality, integrated, emergency voice communications, as well as alert and alarm tone signals. Use them in life safety applications, especially to notify the hearing impaired and where transitory people are expected such as in hotels, malls, airports, hospitals and other public buildings.
UL 1971-listed synchronizing strobeIntegrity strobes synchronize to the latest UL 1971 requirements when used with an external MG1M control module.
Genesis-compatibleCan be mixed with Genesis signals. All Genesis and Integrity strobes on the same circuit meet UL 1971 synchronization requirements when used with an external control module.
Approved for public and private mode applicationsUL 1971-listed as signaling devices for the hearing impaired and UL 1638-listed as protective visual signaling appliances.
High dBA OutputHigh efficency, sealed mylar speaker cone produces a loud 90 dBA at 2 watts.
Multiple Output Taps, 25 or 70 Volt ModelsEasy to select for , , 1, or 2 watt operation. Integrity speakers are supplied with a DC Blocking Capacitor for audio circuit supervision.
Field changeable field markingsLens language or standard FIRE marking is easily changed with optional LKW and LKC series lens kits.
Easy InstallationFlush mount to standard North American 4 square box with 1 extension ring (USA only). Integrity s universal mounting plate allows it to be wired and then left hanging free for easy inspection and testing before it is fastened to the electrical box.
All Integrity speakers include a DC blocking capacitor to allow electrical supervision of the audio distribution circuit. Models for 25 VRMS and 70 VRMS circuits are available. The mylar speaker with its sealed back construction provides extra durability and improved audibility. Wattage taps from W to 2 W provide on-site flexibility.
The suggested sound pressure level for each signaling zone used with alert or alarm signals is a minimum of 15 dB above the average ambient sound level or 5 dB above the maximum sound level having a duration of at least 60 seconds, whichever is greater. This is measured 5 feet (1.5 m) above the floor. The average ambient sound level is the RMS, A-weighted sound pressure measured over a 24-hour period.
Doubling the distance from the signal to the ear will theoretically cause a 6dB reduction in the received sound pressure level. The actual effect depends on the acoustic properties of materials in the space. Doubling the power output of a device (e.g.: a speaker from 1W to 2W) will increase the sound pressure level by 3dBA. A 3dBA difference represents a barely noticeable change in volume.
Speaker: 25 VRMS (suffix -S25 ) or 70 VRMS (suffix -S70 ) - see ordering table Strobe: 20-31 Vdc Continuous
Speaker frequency response 250 to 13,000 Hz; 4 (102 mm) mylar cone, sealed back construction, rated at 8 watts, 8 ohm voice coil
