New harmer simmons SM1800 rectifier 1800WATT

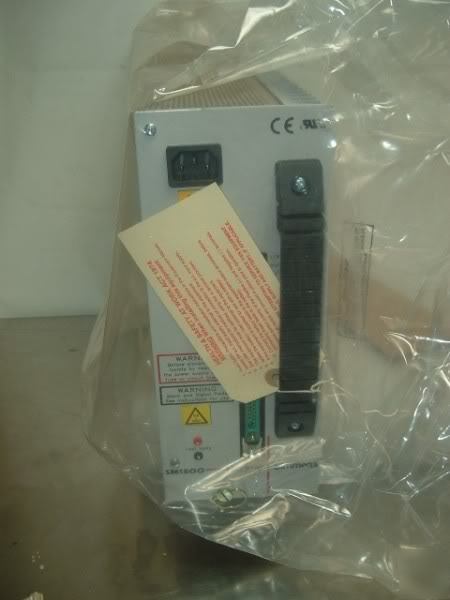

This is a brand new in open box Harmer & Simmons 1800 watt rectifier module. These are for use in a system models MTP1800C and MTP1800HP.
Modular 1800 Watt rectifier designed for the telecoms industry. Convection cooled, front connected switch mode power unit.
Rating from a single rectifier:
25A output at 60Vdc operation - 33.3A output at 48Vdc operation
60A output at 24Vdc operation - 60A output at 12Vdc operation
* Power factor greater than 0.99 typical
* High reliability (40 years MTBF, calculated to HRD5)
* High power density (0.153W/cm3, 2.5W/in3)
* High efficiency (90% typical at full load, nominal mains; 87% for 12V versions)
* Sine wave input current to IEC555, EN60555, IEC1003-3, EN61000-3-2
* Front panel adjustment of key variables
* Boost/equalize as standard
* Float Temperature compensation control input for optimum battery charging or remote voltage control
* Unlimited paralleling within 15%
