Yokogawa DL1540 digital oscilloscope 150MHZ,200MS/s,4CH

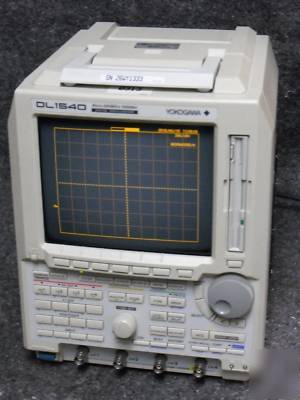

Yokogawa DL1540 Digital Oscilloscope
Yokogawa DL1540 Oscilloscope, Digital: 150MHz,200MSa/s,4ch (Stand alone)
The Yokogawa DL1540 oscilloscope is a graph-displaying device it draws a graph of an electrical signal. In most applications, the graph shows how signals change over time: the vertical (Y) axis represents voltage and the horizontal (X) axis represents time. The intensity or brightness of the display is sometimes called the Z axis.
The Yokogawa DL1540 oscilloscope's simple graph can tell you many things about a signal, such as: the time and voltage values of a signal, the frequency of an oscillating signal, the moving parts of a circuit represented by the signal, the frequency with which a particular portion of the signal is occurring relative to, other portions, whether or not a malfunctioning component is distorting the signal, how much of a signal is direct current (DC) or alternating current (AC) and how much of the signal is noise and whether the noise is changing with time.
Performance Characteristics of the DL1540
Programmability/Connectivity of the DL1540
