VTTEST11 — cable tester with tone generator probe

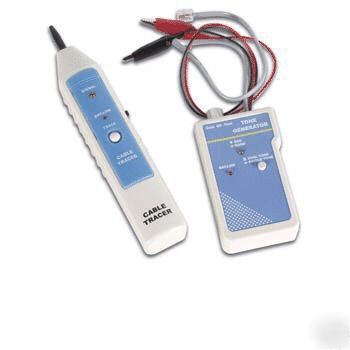

VTTEST11 Cable Tester with Tone Generator
* network tester: consists of a tone generator and a probe
* method: use the tone generator and the probe to determine where a cable is going and whether or not (and where) the cable is interrupted
* signal viewing in 3 modes: lamp (L), speaker (SP) or both (S&L)
* tone generator output (square waveform): single (900Hz) or dual (900 - 1000Hz)
* comes with: soft carrying bag
* working voltage: DC 9V 15%
* working current: 10mA (intermittent tone) / 20mA (continuous tone)
* output wave form: square wave signals 10Vpp
* single audio frequency: 900Hz
* dual audio frequency: 900Hz - 1000Hz
* dimensions: 4.5" x 2.4" x 1.1"x
* working current: 25mA (L) / 80mA (max. SP volume) / 100mA (max S&L volume)
* max. reception sensitivity: > 30mV
* maximum output volume: 120dB
* dimensions: 8.1" x 1.6" x 1.5"
