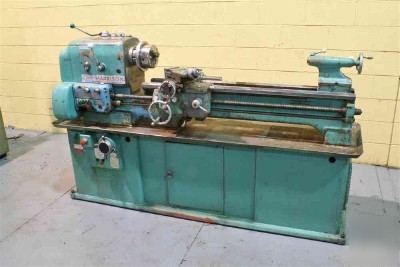

13´´ x 40´´ harrison engine /turret lathe
13 X 40 HARRISON ENGINE /TURRET LATHE
SERIAL .............................. 128576
MODEL ............................... 13 MD
SWING OVER WAYS ..................... 13
SWING OVER CROSS SLIDE .............. 8
DISTANCE BETWEEN CENTERS ............ 40
SWING IN GAP ........................ 20-1/2
SPINDLE SPEEDS ...................... (16) 34 TO 1500 RPM
THREADS ............................. (72) 4 TO 60 TPI
FEEDS ............................... (60) .0006 TO .0093 IPR
SPINDLE HOLE ........................ 1-3/8
CHUCK ............................... 6 3 JAW
6 POSITION TURRET ................... YES
TAIL STOCK .......................... YES
HARD WAYS ........................... YES
CHIP PAN ............................ YES
THREAD DIAL ......................... YES
COOLANT ............................. YES
FORWARD & REVERSING ................. YES
MAIN MOTOR .......................... 3 HORSEPOWER
