31" x 5HP spdl dahlih dl-NC3 cnc vertical mill, retrofi
31" X 5HP Spdl Dahlih DL-NC3 CNC VERTICAL MILL, Retrofi

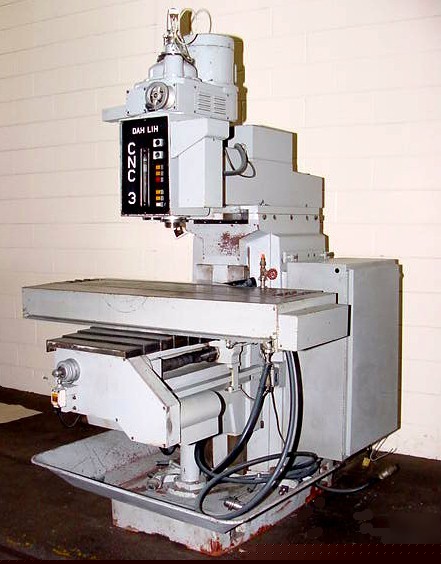

31" X Axis 5HP Spindle Dahlih DL-NC3 CNC VERTICAL MILL, Retrofit Frame, Electrics Stripped has Ball
MODEL: DL-NC3, S/N: 30220, NEW: 1988
WORKING SURFACE (LENGTHxWIDTH)......... 51" x 13"
LONG. (X) ............................ 31"
CROSS (Y) ............................ 17"
VERTICAL (Z) QUILL ................... 5"
(MANUAL) KNEE ........................ 17"
MAX. LOADING CAP ....................... 1100 Lbs
SPINDLE NOSE ........................... #40 NMTB
DIST. BETWEEN SPINDLE CENTER & COLUMN .. 4-3/4" - 22-7/16"
DIST. BETWEEN SPINDLE END & TABLE TOP .. 1-7/8" - 18-7/8"
SPINDLE DRIVE MOTOR .................... 5 HP
COOLANT PUMP MOTOR ..................... .13 HP
DIMENSIONS ............................. 76"D x 60"W x 94"H
WE'RE SELLING THIS MACHINE AS A RETROFIT FRAME - THE
CONTROL IS TOTALLY GONE. REAL GOOD IRON.
Click Here For More Dahlih Machines
