J-mar/ppl lumina 24"X20" video cmm/cms measuring system

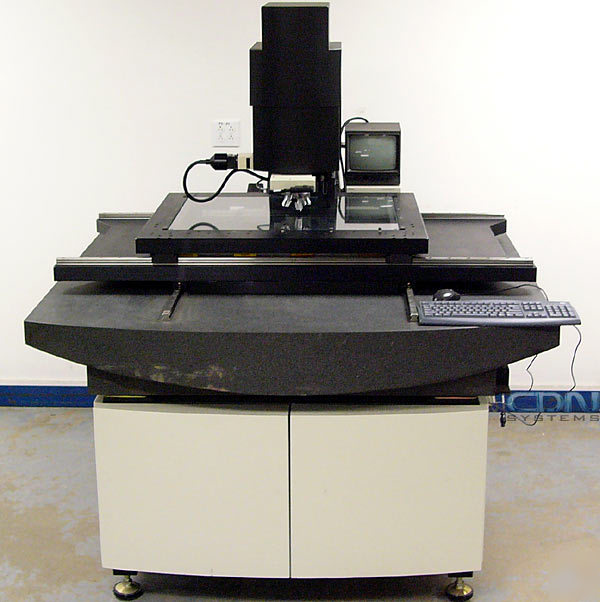

J-Mar/PPL LUMINA 24"x20" Video CMM/CMS Measuring System
Testing notes: we temporarily bypassed the interlock and applied power directly to the power distribution box outputs. The 3-axis modular stage drive/controller system powered on and the computer booted into Windows 2000 Professional. We started the Video CMMII software and were able to verify that the XY stage, Z (focus) stage, and motorized microscope objective turret all home and/or move on command. We were NOT able to get a live video output through the computer, and we couldn't figure out how to get the software to make a measurement. The small video monitor did give an image when an object was placed very close to the laser sensor, and the distance reading changed. No other testing was done.
PPI's Lumina is a high precision Video Coordinate Measurement System (VCMS) for Measurement and Inspection. This fully automatic system combines the unparalleled accuracy and repeatability of our industry renowned MIRAGE Tabletop Measurement Systems with a large stage platform. Lumina is ideal for sub-micron critical measurements on flat panel displays, artwork, precision etched parts, MCM's, Micro-medical devices, preinted circuit boards, solder paste, BGA and coplanarity measurements and many other applications.
* Measuring range: 24" x 20"
* Scale resolution: 0.1 micron
* Equipped with high speed linear drives (12"/sec on X&Y axes)
* Aluminum XY stage on precision linear guides
* Nominal 50lbs. load capacity (200lbs with fixtures to protect removable glass stage plate)
* High mass black granite base and column L2420-01-01
* JMAR Video CMM II software
* Koehler illuminator with Aperture & Field adjustments, Bright/Dark field selector (objectives are BF only)
* 4-place motorized objective turret
* CF PLAN 50x/0.55 /0 EPI ELWD WD 8.7 objective
* CF PLAN 20x/0.46 /0 EPI WD 3.1 objective
* CF PLAN 5x/0.13 /0 EPI WD 22.5 objective
* CF PLAN 2.5x/0.075 /0 EPI WD 8.8 objective
* J-Mar Precision Systems Inc. 4-Axis Modular Drive/Controller System (3 axes are installed)
* DATACON computer with ITEX IC2CMP422 video board
* Computer/remote controlled Fostec Light Source 010-3245-002
* Fiber optic light guides for top, bottom, & ring illumination
* Power Supply LAF 010-1656-001
* Power Distribution box 010-4462-001
* Keyence LT-8010 Confocal Laser Displacement Meter
* Teletrac Laser Tracking Autofocus 8000
* Keyence Laser Focus Displacement Meter LT-8105 with LT-V201
* Panasonic Video monitor TR-990c
* Panasonic machine vision CCD camera GP-MF602
* console objective control 245-1370-001
* console e-stop 245-1263-001
* Light source control 245-1366-001
* DB25 goes to computer "JOYSTICK" port
* Also needs a computer monitor
