Maxim MAX135CWI 15-bit adc with parallel interface
Maxim MAX135CWI 15-Bit ADC with Parallel Interface
Maxim MAX135CWI 15-Bit ADC with Parallel Interface - NOS
* 15-bit, Multi-slope Integration ADC
* 15 V Resolution at 16 Conv/Sec
* 125 A Max (Normal Operation)
* 10 A Max (Sleep-Mode Operation)
* 0.005% Accuracy at 16 Conv/Sec
* 3 Super Bits for 18-Bit Resolution
* Low Noise Operates at 300mV Full Scale
* Easy P Interface 8-Bit Parallel Data Bus
* 10pA Input Leakage Current
The MAX135 is a CMOS 15-bit, binary-output analog-to-digital converter (ADC). Multi-slope integration provides low-noise and high-resolution conversions in less time than standard integrating ADCs: The MAX135 is tested at 16 conversions per second, but operates at up to 6 times that rate. The MAX135 uses Super LSBs with data averaging to achieve 18-bit resolution.
Supply current is 125 A maximum during normal operation and only 10 A maximum in sleep mode. Low conversion noise allows tested operation at only 300mV full scale (15 V per LSB). A simple 8-bit parallel data bus and three control lines easily interface to all common microprocessors, and twos-complement output coding simplifies bipolar measurements.

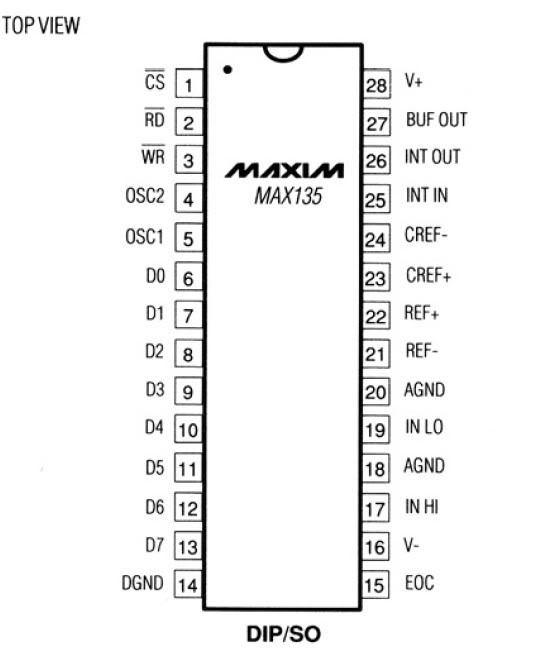

High resolution and compact size make the MAX135 ideal for data loggers, numerical control systems, weight scales, data-acquisition systems, and panel meters. The MAX135 comes in 28-pin DIP and SO packages in both commercial and extended temperature grades.
http://datasheets.maxim-ic.com/en/ds/MAX135.pdf
