New us cooler 6'X6' i/d walk-in cooler, top mount ref.-

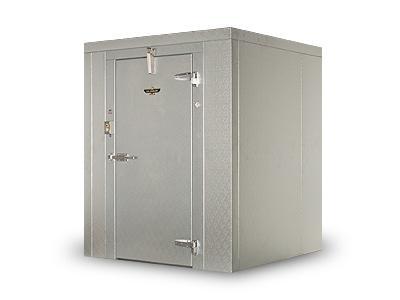

US Cooler 6'x6' I/D Walk-in Cooler, Top Mount Ref.-NEW
US Cooler Indoor Walk-in Cooler
1/2 HP -Top Mount - Indoor refrigeration system
Without Floor 6' X 6' X 7' 6" Nominal (5' 10 1/2" X 5' 10 1/2" X 7' 6" Actual)
Model CL510510NF.D W/ 1/2 HP indoor 3767
U.S. Cooler manufactures premium walk-in coolers, freezers, and combination units at competitive prices. These installations are used for all types of cold storage. Various applications include restaurants, convenience stores, floral stores, grocery stores, warehouses, schools, and institutions.
This walk-in comes with a 1/2 HP top mount indoor refrigeration system. System comes with a condensing unit, evaporator unit, and associated parts installed on a walk in cooler plug. This unit is pre-charged and ready to be set in the top mount refrigeration hole on top of the walk in. It does require the installation of the evaporator condensate line, which needs to be run to a drain. This refrigeration system rates a 2 on a scale of 5 with 5 being the hardest most technical to install and 1 being the easiest. This refrigeration system must be installed by a licensed refrigeration technician. Our company can assist you with this requirement.
* Our company is an authorized US Cooler discount dealer.
* US Cooler manufactures Premium Quality Walk-ins at Extremely
* Unit is NSF and UL listed and tested.
* This Walk-in can be installed indoors or outdoors.
* This indoor walk-in requires a minimmum of 3,952 BTUs.
Refrigeration system is designed to hold product at 35 degrees Fahrenheit with product entering at 55 degrees Fahrenheit.
REFRIGERATION - Top mounted refrigeration system, self contained, med temp, 1 phase, 1/2 HP, hermetic, 115 volt. Includes: Copeland condensing unit, evaporator, thermostatic expansion valve, high pressure control, sight glass, drier, solenoid valve, thermostat. maximum low 35 degrees. refrigerant - R22. Unit mounts on a 22 1/2" x 33" plug.(Refrigeration is based on an altitude of 5000 feet or less)
PANELS - Wall and ceiling panels are constructed with tongue and groove 1 1/4 LB expanded polystyrene insulation sandwiched between two sheets of 26-gauge stucco embossed galvalume steel. Each panel comes equipped with cam action locking devices and double barrel vinyl gasket to allow easy assembly of walk-in in the field.
* FLOOR - Walk-in coolers and freezers without a floor must be installed on a ground contact concrete floor. A cooler can be installed without insulating the floor and a thermal break under each wall panel but we recommend installing both. A freezer must be installed on an insulated concrete floor and must include a thermal break under each wall panel.
* DOOR - 34 x 76 flush-mount cooler door is manufactured with foamed in place polyurethane insulation encapsulated between sheets of embossed 26 gauge stucco embossed galvalume steel. Door is right hand hinged and includes lever action handle, light, hinges, cam-locks, door closure, lighted switch and vapor-proof light fixture.
Please call us with questions before making purchases.
Walk-in panels include a 10-year repair or replace parts only warranty. All other parts carry a standard 1-year parts warranty.
Refrigeration unit includes a 1-year parts and labor warranty. Walk-in panels include a 10-year repair or replace parts only warranty. All other parts carry a standard 1-year parts warranty.
