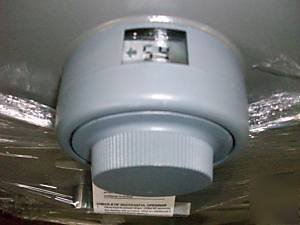

Mashamilton cdx-09â„¢ high security door locks
Since the X-09 isn t subject to mechanical limitations, it provides a far superior solution for your container needs. Advanced engineering assures that X-09 entry codes can not be compromised by observing the dial position. Plus, the tamper-resistant X-09 can not be hacked because the digital information is hidden in the processor s non-volatile memory. Representing a giant step forward in controlled access, the X-09 features multiple modes of user access, and audit features. These user-friendly locks provide virtually maintenance-free operation and features Kaba Mas s exclusive PowerStar technology.
X-09 Applications: We ve integrated the X-09 technology with a rim deadbolt platform to represent a unique and complete high security door lock solution while complying with most safety requirements. Along with the X-09, the combination door lock unit is added to form the CDX-09 which allows you to have access control on any door. The CDX-09 conforms to FF-L-2890.
High Security Pedestrian Exit Device* Kaba Mas has configured the X-09 in ways that fit your specific applications. We ve mated the CDX-09 with both a mechanical fire rated exit device or an electronic latch retraction fire rated exit device (for use with your card reader or other input device). In either application, the modified CDX-09 is interconnected with the exit device releasing the deadbolt and the latchbolt when the touch bar is depressed.
Limited view liquid crystal display with indicator arrows
Three modes of operation: A-single combination code b-Dual combiation mode which allows access only when two different three number combinations are dialed within 10 seconds of one another c-Supervisory/subordinate mode
Direct dial: no need to clear before entering combination
Once you stop turning the dial, the power will shut down after 40 seconds
Audit feature: records all openings and the record is non-resettable. Records the unsuccessful attempts after 3 incorrect combination attempts and resets after a correct opening
Lock on back cover pin protects removing the back cover without the combination
Secure against high-voltage attack, robot attack, x-ray methods, magnetic, vibration and RF
Meets or exceeds FF-L2740A specifications
Case And bolt strength: 600 lbs in 2 directions
Comes supplied with type 1 strike
