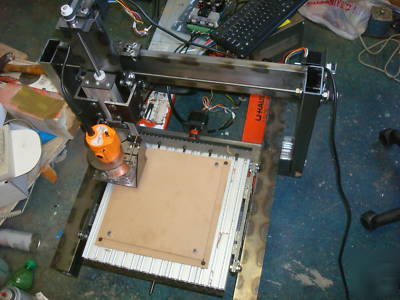

Prymfg cnc router, cnc mill, milling machine
Travel of (Y)14" x (X)14" x (Z)6"
Compatible with nema 23 steppers or servos
The new CNC-3 from PryMfg has antibacklash nuts on all axes and an innovative solution to linear motion. Our custom made, patent pending, linear bearings offer you increased stiffness, life, and resistance to environmental contaminates at a fraction of the cost of conventional systems. The entire frame of this machine is built from welded structural steel. The table and the moving part of the Z axis of this machine are built out of aluminum tslot extrusion for easy bolting. This both makes it extremely stiff and allows you to bolt all of your gizmos and accessories to the machine. The CNC-3 uses a moving table instead of a fixed table with the spindle moving in all 3 axes. This gives increased stiffness by not having the slop in the axes multiplied 3 times.
Has almost 50 custom laser cut steel parts, which are used for the linear bearings, bearing holders, and motor mounts.
+ Linear guide rails welded to superstructure. 12 time stiffer than bolting the guide rails to say aluminum tslot.
+ Welded steel super structure for increased stiffness and superior dampening to aluminum.
+ Precision laser cut steel hardware.
+ Antibacklash acme nuts on all axis.
+ T-slot table with slots every 1".
+ T-slotted z-axis for router mounts.
+ Love joy couplers for Y axis.
+ Pulleys and belts for X and Z axes.
+ 3 Axis control box ( 3 Axis controller, up to 1/16 microstepping, included and wired for $150).
+ 3 186 oz/in Nema 23 stepper motors(Add $150 to have motors included and installed).
+ Limit switches (included and wired with purchase of 3 axis control box)
+ Spindle (Harbor freight router included for $35)
+ Computer (Included for $300, completely setup. Still does not include monitor, mouse, keyboard)
+ Paint (Do it yourself, don't do it at all, or we will for $200)
Please use the make offer button to purchase extras. If purchasing the motors and controllers, total $300 extra, all wiring will be completed for you. System will be ready to hook up to a PC. Live CD and configuration files included. Uses Linux/EMC2 control software and HeeksCAD CAD/CAM.
+ $900 for all hardware and steel cut to size. You weld, drill and tap.
+ $600 for just the hardware. You obtain the structural steel components. Steel can be obtained from OnlineMetals and/or your local dealer.
