Tek tektronix 7S12 tdr sampler 426-0679-000

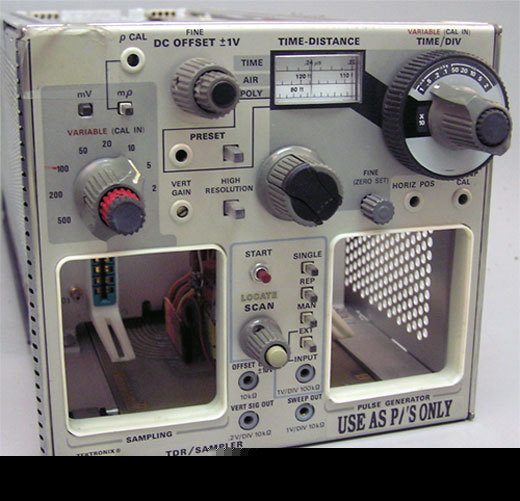

TEK Tektronix 7S12 TDR Sampler 426-0679-000
The 7S12 TDR/Sampler Without Sampling Heads Plug-in
has vertical scales calibrated in mp (reflection coefficient 0.001)
and mV from 2 to 500 units/div in 8 steps. The unit has a tape dial
of 4900 ft, 490 ft, 49 ft (air dielectric); 3200 ft, 320 ft, 32 ft (polyethylene dielectric);
and 10, 1, and 0.1 s (time). The unit also provides time/division
settings of 20 ps to 1 s in 1-2-5 sequence..
