Digital lcd clamp on meter amp ac/dc volt multimeter uk
* Graphics,Video Cable & TV Car
* MP3 Apple iPod Accessories
* Video Games Accessories Musical Instruments

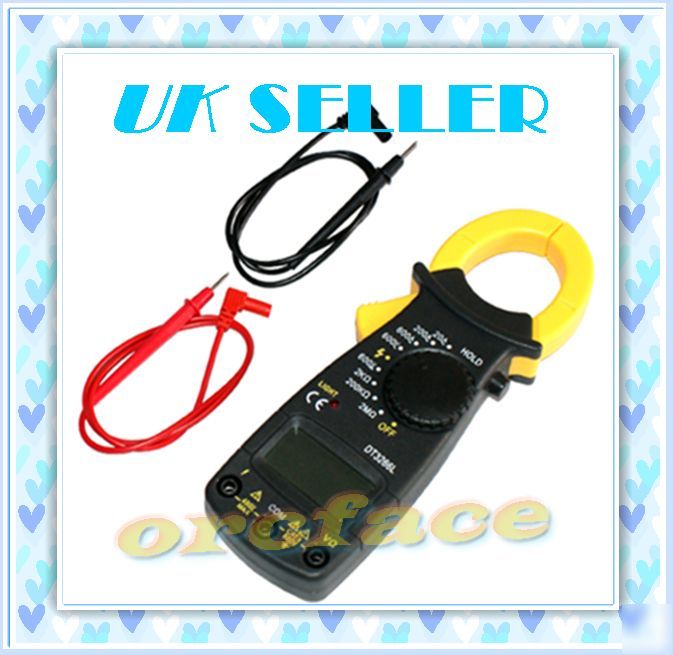

This meter uses Large Scale Integration and unique function circuits. It can measure AC Voltage, DC Voltage, AC Current, DC Current, resistance, diode, frequency, temperature and fulfill audible continuity test. With the function of phase indication and identifying live-wire, this clamp meter is an ideal instrument for electricians.
* AC/DC Voltage measurement
* Input Impedance: >/= 10 Mohm
* Overload Protection: 250 DC/AC virtual value
* Max display: 1999, Auto polarity display
* Sampling speed: 2 times per second
* Over-load indication: "1" is displayed
* Operating Environment: 0 ~ 40 degree C, at < 80% RH
* Storage Environment: -10 ~ 50 degree C, at < 85% RH
* Power: 2 size AAA batteries (Not included)
* Static electricity: about 4mA
* Product Size: 167 x 55 x 22 mm
* Measure method: double integral A/D switch implement
* Clamp dimension: 25mm for open jaw; 35mm for inner diameter
* Accessories: users manual, test leads, phase link line (only 3266A, 3266C, 3266D, 3266G)
Note: test lead under measure should be put uprightly in the center of clamp sensor, or accuracy will be affected.
