New laser xyz stage port fiber chuck, gimbal positioner

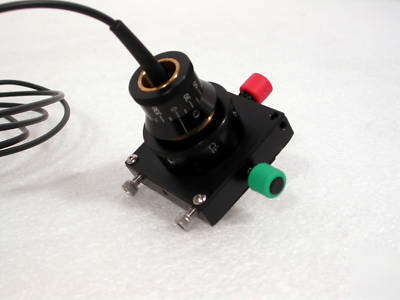

Nice XYZ laser fiber launch stage. Uses a Newport 'Connectorized fiber holder with rotation PN: 561-FCA3 (for SMA connector)
to hold an SMA fiber. XY adjustments are made with the red and green knob's. The Z axis is controlled by rotating a gnurled ring which engages a finely threaded brass cylinder. Stainless set screw's are positioned around the cylinder to lock it in place if needed. Bottom of the stage has three 1/4-20 mounting holes.
