Non linear system x-34 short-depth digital panel meter

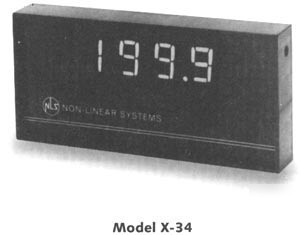

NON LINEAR SYSTEMS X-34 X Series Digital Volt/Current Meter
They are new old stock They all are in working order with Instructions
Weight metric: Two ounces (56.7 grams)
Maximun Input Voltage: 250V all ranges except 1000V, which is 1200V
Common-Mode Voltage: -1.5V to +4V between signal LO and ower ground
Decimal Location: Internaljumper to any three or four locations x.x.x.x.
Scale Factor Control: 5% full scale
Update Rate: Three readings/second
Temperature coefficient: .01% or reading/ C
Settling Time: Two seconds for sull scale input change
Common-Mode Rejection Ratio: 80 dB minimum
Normal Mode Rejection Ratio: 40 dB minimum
Warm-up Time: 10 seconds to rated accuracy
