Cincinnati FTV850-2500 cnc vertical milling machine

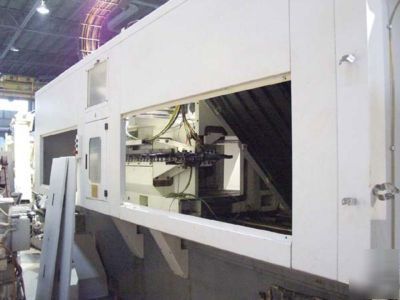

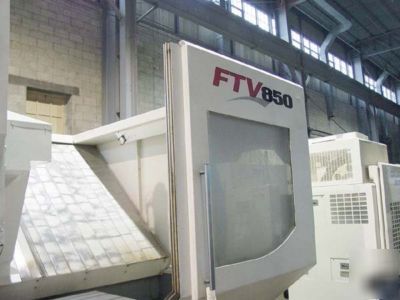

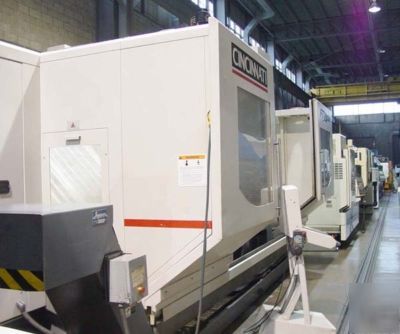

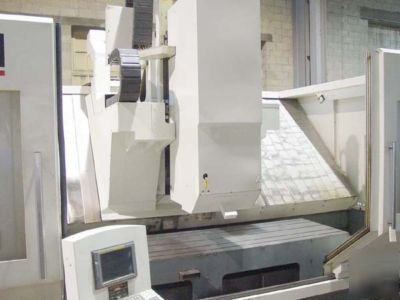

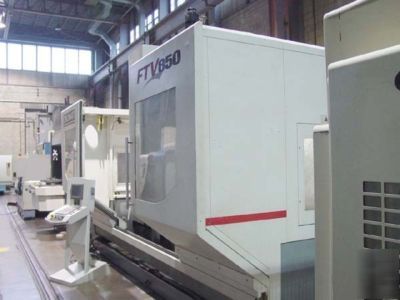

CINCINNATI LAMB FTV850-2500 VERTICAL MACHINING CENTER

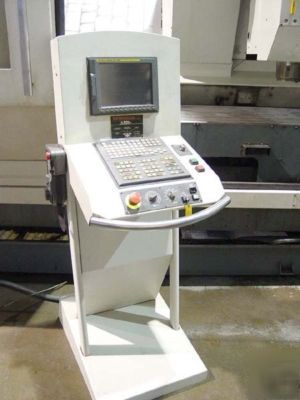

Built late 2003 Installed as New 2005 EQUIPPED WITH: Fanuc 18i-MB CNC Control, Data Server Package, Hand Held Pendent, Rigid
Tapping, Additional M-Codes, 36 Station Automatic Tool Changer, Heavy
Duty 40 HP Cat-50 Spindle, Full Coolant Enclosure, BTS Work Partition
Option Ready, 4th axis Prewire, Spindle Load Meter, Thru-Spindle

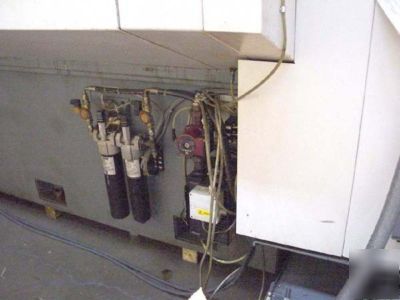

Coolant, Chip Conveyor and Coolant System. CATALOGUE SPECIFICATIONS: X Travel (Longitudinal)............................... 100"
Y Travel (Cross)...................................... 32
Z Travel (Vertical)................................... 31.5

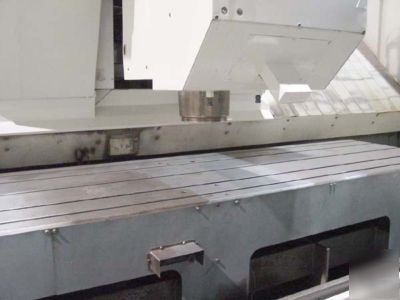

Table Working Surface................................. 32"x 123.6"
Table Work Load Capacity.............................. 18,000 LBS
Spindle Horsepower.................................... 40 HP
Spindle Speeds........................................ 30-6000 RPM
Spindle Torque........................................ 600 ft.lbs.
Spindle Taper......................................... #50 CAT
Rapid Traverse ,...................................... 1500 IPM
Feedrates............................................. 787 IPM
Tool Storage Capacity................................. 36
Approximate Dimensions................................ 11'6" x 19'3"
Approximate Height.................................... 143"
