2 watt metal oxide most needed ohm sizes resistor kit

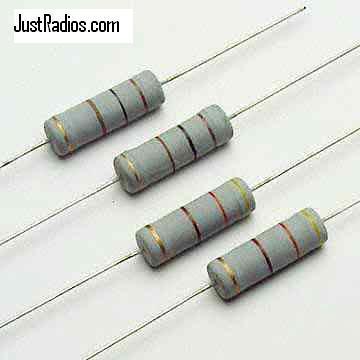

This Resistor Kit: 416 Flame-Proof 2W Metal Oxide/Carbon Film Resistors : 5% Tolerance : (16 each of 26 most popular sizes).
This kit contains 416 top quality, new stock, flame-proof metal oxide/carbon film resistors. Sizes 100 ohm thru 270K are flame-proof metal oxide and 470k thru 2.2M ohm are flame-proof carbon film. This kit contains 16 each of 26 often needed sizes sizes 100 ohm thru 2.2M ohm. These brand n ew factory fresh 2 watt flame-proof resistors feature: wattage of 2 Watts; tolerance: +/- 5%; operating temperature range: -55C to +155C; working voltage for flame proof metal oxide is 350V and for flame proof carbon film WV is 750V; flame proof coating; solder plated copper wire axial leads; ISO 9002 & UKAS certified and 100% RoHS compliant.
The resistors in this kit are excellent resistors for use in high power circuits such as tube radios, amps, TVs, etc.; have high stability and high reliability under diverse conditions and high temperatures....ideal for use in tube electronics. An economical, practical replacement for carbon composition resistors.
: 416 Flame Proof Metal Oxide/Carbon Film 2W Resistors
This kit contains 416 metal oxide resistors ..... 16 each of the 26 most often needed ohm values Highly stable and reliable, metal oxide resistors are "favorite replacement" for carbon composition resistors. .
Construction: Resistance element is formed by the oxidation reaction of a vapor or spray of tin chloride or tin-oxide film over a high thermal conductive rod. A flame proof coating is then applied. Total length of each 2 watt resistor is 80mm with body size 5mm by 15mm. *470K and over are flame-proof carbon film type.
* Wattage: 2 Watt (Can be used to replace 1/2W, 1W and 2W resistors).
* Working Voltage: For Metal Oxide working voltage is 350V with maximum overload voltage of 800V. For carbon film the working voltage is 750V with overload voltage of 1500V.
* Excellent resistor for use in high power circuits.
* High stability, superior resistance to heat and high reliability in high voltage applications. Ideal for use in tube radio, amp, TV electronics.
* A practical, economical replacement for old carbon comp resistors.
* Solder plated copper wire axial leads.
* 16 of 2,200,000 ohm at 2 W
* 8 feet of heat shrink tubing
