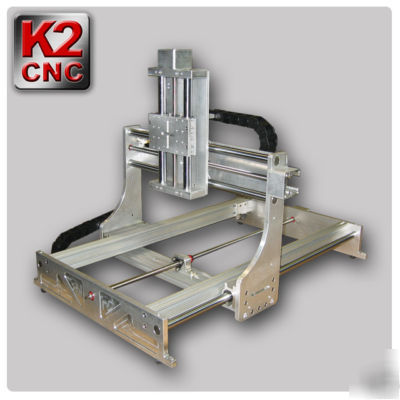

2009 K2 cnc router, cnc mill - milling machine 2514(5)t
(Version 2009) (Shaft linear motion, compatible with nema 23 steppers and k2 servo motors)
The new KT-2514-09 has 20mm shafts, antibacklash nuts, wider 19 inch material capacity. Use the accurate machine to cut thin aluminum, plastics, and wood. The anti-backlash nut and the .100" pitch leadscrews provide very accurate resolutions and is great for fine inlay work. The pitch provides great mechanical advantage when cutting hard woods and have been tested to cut .375" deep, at 70IPM, with a .375" diameter bit when used with Gecko drives and 280 Oz/in motors. The frame is compatible with Nema 23 motors or K2 servo motors. With the right approach in your toolpaths, spindle, bits, accessories you can achieve results in milling that once required a $50,000 and more cnc machines. With the KT-2514-09 you now can do this in your own garage, business, or anywhere with 110V outlet.
* Easy to assemble. 99% preassembled.
