MMBT2222A transistor pnp in a sot-23 package id "R2T"
MMBT2222A Transistor PNP in a SOT-23 package ID "R2T"
Unknown MMBT2222AR-R Transistor PNP
* We know that 2N2222A is a NPN transistor
* but his guy is definitely a PNP!
* It is possibly a complementary to the NPN

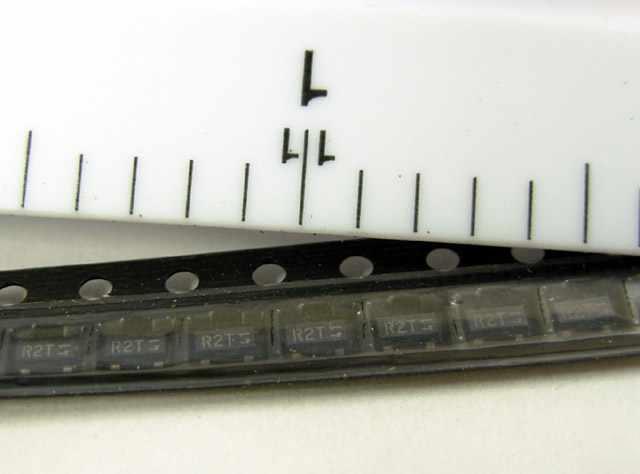

* Laid on a table so the ID "R2T" can be read
* base is on lower left, emitter on the right
* and collector on top middle.
* We assume that it can handle about the
* same as a SMT 2222A, that is ~ 40 V / 0.5 A
* This is all we know about these.
