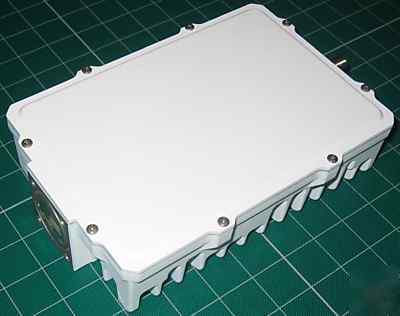

New NJT5037F 3W ku-band njrc buc ***** ****
+35 dBm typical, +33 dBm minimum over temperature
Required External Reference Signal
Phase Noise : -125 dBc/Hz max. @ 100 Hz
N-type, female (50 ohm) [Model No. NJT5037]
F-type, female (75 ohm) [Model No. NJT5037F]
Shut off the HPA in case of LO unlocked
186.7 mm (L) x 119 mm (W) x 44.5 mm (H)
[7.35 (L) x 4.69 (W) x 1.75 (H)]
This unit is the fixed gain transmitter incorporating a low phase noise
Phase Locked Local Oscillator and a high reliable MMIC High Power
Amplifier, and converts L Band (950 to 1,450 MHz) IF Input to Ku
Band (14.0 to 14.5 GHz) RF Output.
Questions? Please contact us for more info 1-(***)-510-6562
