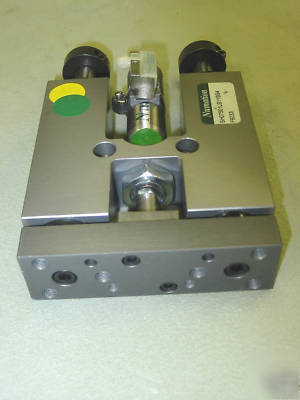

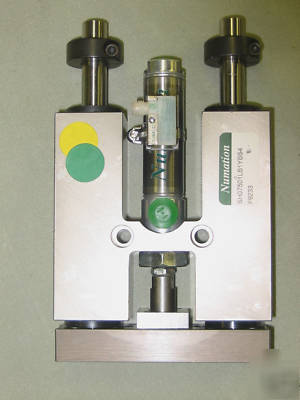

Air slide, numation. 3/4" bore x 1" stroke
THE GUIDE RODS ARE 1" DIA. THOMPSON ROD AND THEY RUN ON LINEAR BALL BUSHINGS, IT IS A VERY SMOOTH SLIDE.
THE MOUNTING PLATE ON THE END OF THE ROD IS 5/8" X 1 3/16" X 6 4" AND HAS 8 TAPPED HOLES AND 2 PIN HOLES
THERE ARE 2 -1/4" CLEARANCE HOLES IN THE MAIN BODY FOR MOUNTING AND ALSO 6 TAPED HOLES ON BOTH SIDE
THERE IS A MAGNETIC RING ON THE PISTON AND COMES WITH 1 SWITCH, NUMATICS #SH6-002 NPN 6-30VDC
MEASURMENTS, OVER ALL LENGHT 6 3/4", 4 1/16" WIDE, 1 1/4" THICK
THIS AIR SLIDE HAS NEVER BEEN USED.
