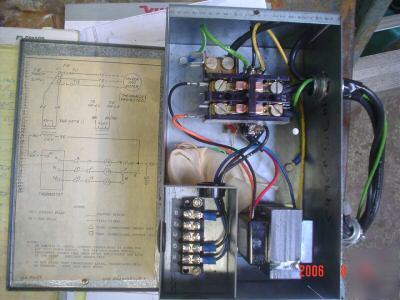

Hvac electric control box 230V capacitors & transformer
1. User Copper conductors only
2. On 208/230V Units, Control transformers is wired for 230 volt power supply. For 208 Volt power supply, disconnect orange lead from FR-L3 and connect Red lead in its place. Insulate orange lead. (Ref. Schematic)
3. All 3 0 Motors protected under primary single phasing conditions.
4. For 1 0 Motor connect field power supply to terminal L1 & L3 and insulate unused end of lead T2 at motor.
ALControlBol 7510A94G01 208/230V.
Accessory Control Box for Air Handlers: Models - AL024A, AL030A, AL040A.
