> 40-1600X trinocular compound high power microscope+case

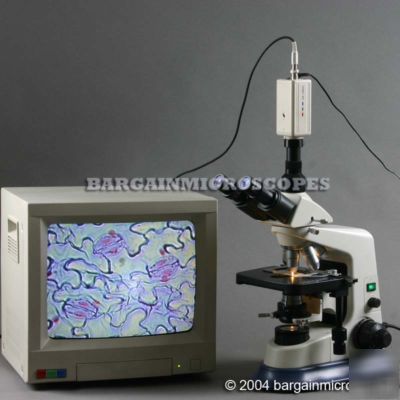

40-1600X trinocular compound high power microscope+case
+ CCD LIVE MOTION VIDEO CAMERA
* Unique Ability to have Image in Both Oculars and Photo Port Simultaneously. This is Perfect for Training as the Binocular Eyepieces can be viewed by the Instructor, and Everybody Else can Watch the Viewing Screen. Most Trinocular Scopes lose light in one ocular when light is diverted to the photo port. This scope has the ability for 100% of light in both oculars, or divert light and get 20% light in oculars and 80% in trinocular.
* Ten Magnifications: 40x, 64x, 100x, 160x, 200x, 320x, 400x, 640x, 1000x, and 1600x.
* Eyepiece Sets Included: Wide Field 10x and 16x.
* Five PLAN DIN Objectives: 4x, 10x, 20x, 40x, 100x (Oil Immersion).
* High Quality PLAN Objectives! Not the Cheaper Common Achromatics!
* Spring Loaded 20x, 40x and 100x Objectives to Protect Slides.
* Five Position Quintuple Nosepiece for Holding Five Objectives! Most scopes hold only Four!
* Reverse Facing Objectives to keep unused objectives out of the way.
* Variable Intensity 25W Tungsten Halogen Transmitted Base Illumination.
* Koehler is Important for Regular Brightfield Work and Essential for Phase Contrast.
* Few Scopes have the More Expensive Koehler Illumination System. If you see a Cheaper Scope, it probably Doesn't have Koehler.
* Large Graduated Mechanical Movable (up/down and longitudinal Y-direction) Stage: 175 x 145mm.
* Low Position Coaxial X-Y Slide/Stage Movement Knobs - Range of Movement: 85mm (X-Direction - Slide Movement) x 50mm (Y-Direction - Stage Movement).
* Coarse Adjustment Travel Range: 30mm. (Stage Movement Distance Up/Down).
* Total Overall Height of Microscope: 460mm.
* Instrument Weight: 20 lbs.
* Includes: Dust Cover, Instruction Manual, Bottle of Immersion Oil, Extra Bulb and Fuse.
* Comes with standard phototube and 1x cmount for attaching external camera equipment.
* Optional Plan Phase Contrast Kit.
* Optional Darkfield Illumination Kit.
