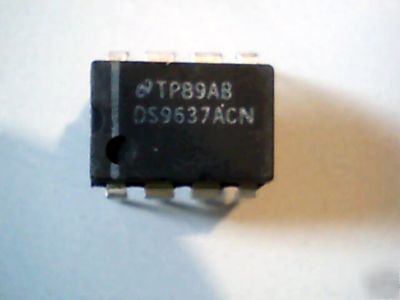

> DS9637ACN - dual differential line receiver x 4
DS9637ACN - dual differential line receiver x 4
DS9637ACN - Dual Differential Line Receiver - National Semiconductor
http://pdf1.alldatasheet.com/datasheet-pdf/view/8557/NSC/DS9637ACN.html
The DS9637A is a Schottky dual differential line receiver
which has been specifically designed to satisfy the requirements
of EIA Standards RS-422 and RS-423. In addition, the
DS9637A satisfies the requirements of MIL-STD 188-114
and is compatible with the International Standard CCITT recommendations.
The DS9637A is suitable for use as a line receiver
in digital data systems, using either single ended or
differential, unipolar or bipolar transmission. It requires a
single 5V power supply and has Schottky TTL compatible
outputs. The DS9637A has an operational input common
7V either differentially or to ground.
Satisfies EIA standards RS-422 and RS423
High input common mode voltage range
