Star swiss type cnc lathe mod# sv-32J w/ lns bar feeder

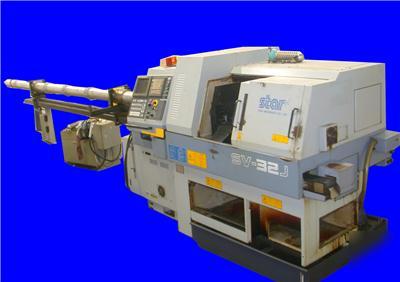

STAR SWISS TYPE CNC LATHE MOD# SV-32J W/ LNS BAR FEEDER
VERY NICE STAR SWISS TYPE CNC LATHE MOD# SV-32J W/ LNS 12' BAR FEEDER AND CHIP CONVEYOR
* Maximum Machining Capacity: 1-1/4" Diameter
* 15 Degree Spindle Indexing
* Max. Headstock Stroke: 12-13/64"
* Max. Drilling Capability Stationary Tool: 3/4"
* Spindle Speeds: 300 - 7000 RPMs
* Turning Tools: 4 Positions Gang Slide, 8 Position Turret
* Power Driven Tools 3 positions on gang
* Power Drive Tool Speeds 6000 RPMs
* Pick Up Ability: 1-1/4" Maximum Chucking Diameter, 5-7/8" Maximum Part Length, 2-15/16" Maximum Part Projection Length, 4-29/32" Maximum Part Insert Length
Equipped with: 10 HP Spindle Motor, LNS Hydrobar 12' Bar Feeder, Model: 6.45 HS-5, Turbo Chip Conveyor, Model: 5475-8018, and a Fanuc 18i-T Controller
