Angle plate with step machinist toolmaker 2D 1/4" x 20

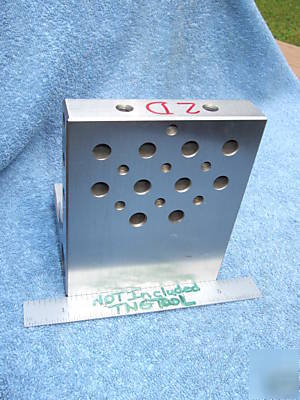

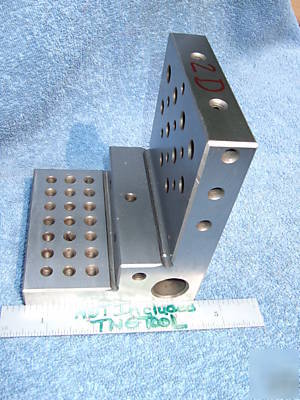

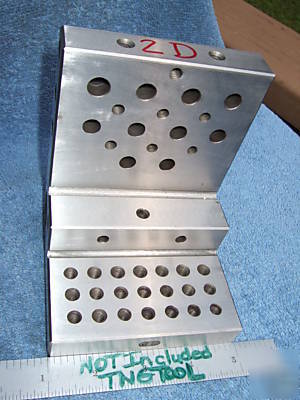

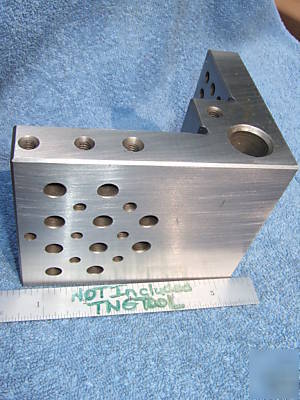

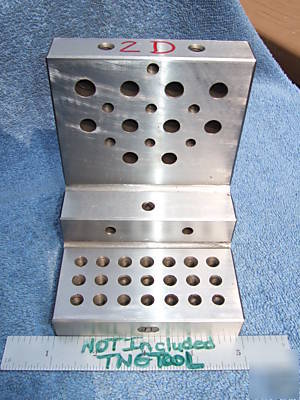

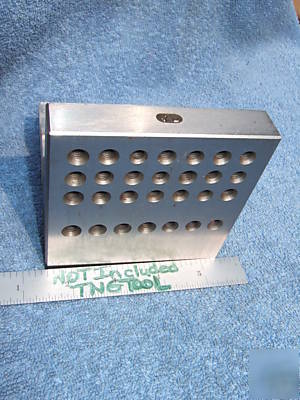

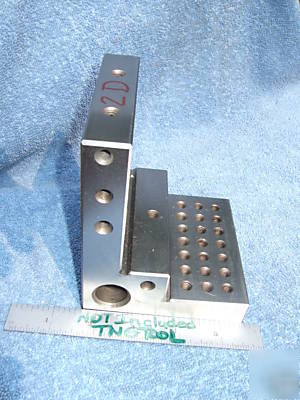

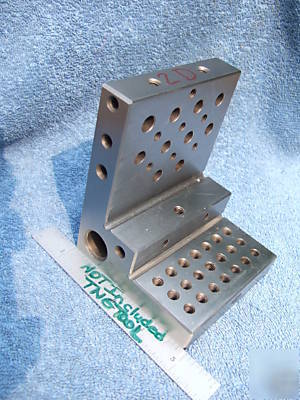

ANGLE PLATE MADE BY USA AMERICAN TOOLMAKER! AS PICTURED!!! NO DAMAGE,RUST, BROKEN BOLTS OR TAPS CHIPPED HOLES!
I HAVE SEVERAL ANGLE PLATES LISTED THAT ARE VERY CLOSE TO EACH OTHER IN OVERALL SIZE. SEE MY OTHER ANGLE PLATES. CHECK THE SUPER SIZE PICS !

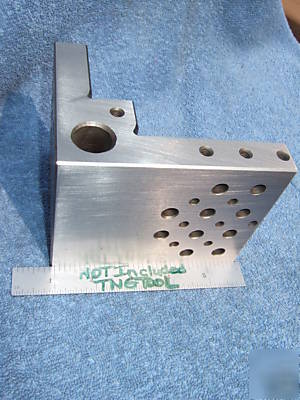

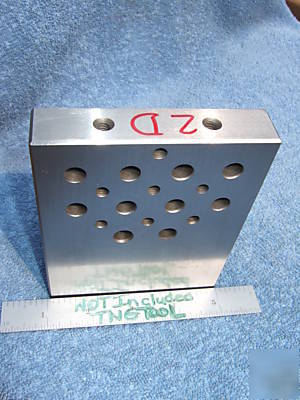

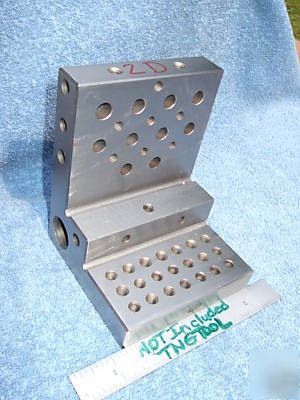

PLATE MEASURES 3.976" WIDE X 4.976" TALL X 3.964" TALL. ANGLE BLOCK HAS (48 TOTAL) TAPPED 1/4" X 20 HOLES AND (10) 3/8" REAMED HOLES IN LONGEST FACE AS SHOWN. STEP MEASURES .885" X 1.076" WITH (3) TAPPED 1/4" X 20 HOLES IN STEP AS SHOWN ONE IN CENTER LOOKS TO HAVE TAP BURNED OUT OR MIS SPOT DRILLED? BOLT GOES IN EASILY AND ABOUT 1" DEEP.

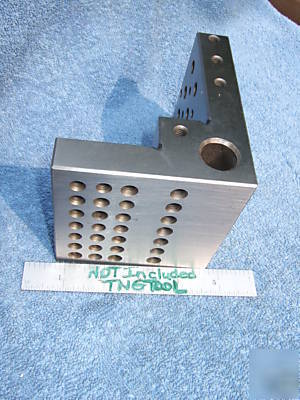

BLOCK HAS BEEN FRESHLY GROUND USING HERMANN SCHMIDT SQUARING BLOCK AND PRECISION CHAMFERED. ALL TAPPED HOLES LOOK TO BE IN GOOD SHAPE WITH NOTHING BROKE OFF IN THEM OR ANY CHIPPED HOLES HOWEVER MANY ARE TIGHT ON THE 1/4" X 20 BOLT? 21 TAPPED HOLES 1/4" X 20 IN SHORT FACE DO APPEAR TO BE TAPPED THROUGH THE FACE 7 ARE BLIND FROM THE OUTSIDE FACE AS SHOWN IN PICTURES.
UPON CLOSER INSPECTION 2 OR 3 ARE NOT TAPPED ALL THE WAY THROUGH! VERY CLOSE BUT NOT ALL THE WAY AND 1 HAS A TAP BURNED OUT AND THREADS ARE MISSSING ,BUT BOLT GOES CLEAR THROUGH AND HOLDS WELL! THERE ARE 24 GOOD HOLES IN THE SHORT FACE
