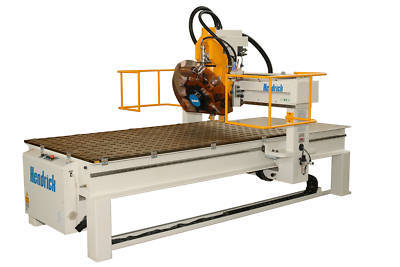

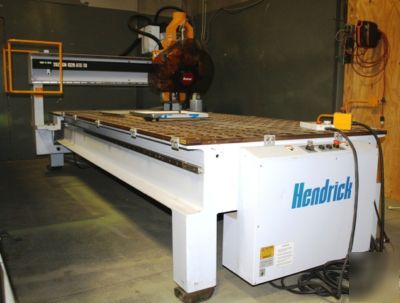

Hendrick 20ZXGN 1326 ATC T6 CNC Router
Machine Model: Hendrick 20ZXGN-1326 ATC-T6 CNC Router
Machine Type: Fixed table design with high speed moving bridge.
Construction: The machine base and bridge incorporate heavy duty
welded steel plate, steel tube, and contiguous beam construction providing rigidity and stability. All precision component mounting surfaces are precisely machined on CNC machining centers. THK rectangular way bearing and ball screw systems are utilized. All ball screw components are anti-backlash to provide the highest level of accuracy.
One 51 x 102 fixed work table. Plenum style vacuum ready table (for material hold down) with heavy duty phenolic table surface over steel structure. Round holes with stoppers for zoning and pod fixturing. Remote start, stop & vacuum controls mounted on front of table.
7.5kW (12 HP) high frequency BT-30 electro router spindle with 6 station rotary automatic tool changer mounted on the front of the router spindle for rapid tool change.
3,000 to 18,000 RPM. Spindle speed is M code programmable. Air blast nozzle for tool cooling included.
X = Heavy duty THK precision ball screw.
Y = Heavy duty THK precision ball screw.
Z = Heavy duty THK precision ball screw.
Axes Stroke: X = 51 @ 2000 inches per minute
Y =102 @ 2000 inches per minute
Z = 7.9 @ 236 inches per minute
Linear Motion: All CNC precision ground hardened steel THK rectangular linear way system with linear roller bearings.
Servo System: 3 axes simultaneous AC servo drives on each X, Y, and Z axes.
Indexing Speeds: 2,000 inches per minute
Positioning Accuracy: +/-.002 (+/-.05mm)
Repetitive Accuracy: +/-.0008 (+/-.02mm)
Control System: SNC-USBII / PC controller with Microsoft Windows XP Professional operating system. Full color CRT display. 14 GB (or larger) size hard drive for large program storage capacity.
Built in easy programming software included. International standard machine code language (G & M) for interface with all industry standard CAD/CAM programming software packages. Built in diagnostics. Tool path graphics and many other standard built in features.
.dxf file import software for easy CAD/CAM programming included.
Vacuum Hold Down: 7.5kW (12 HP) roots type rotary screw vacuum pump. Muffler and pressure release valve included.
Air Supply: 100lbs. compressed air at 10CFM required
