New invertiweld 200PULSE hf ac/dc industrial tig welder
PLEASE DIRECT ANY ENQUIRIES TO MY MOBILE NUMBER (***)-375-6500 9AM-7PM PST OR ****@plasmatigandmig.com

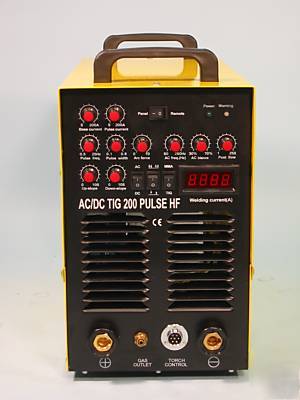

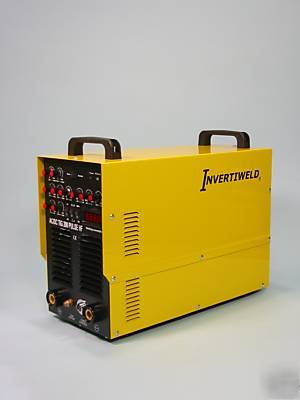

NEW FOR 2009 THE INVERTIWELD AC/DC PULSE HF 200 COMPACT INVERTER TIG/ STICK WELDER.
A VERY HIGH QUALITY IGBT INVERTER FROM ASIA WHICH OFFERS PERFORMANCE AND CONSTRUCTION EXCEEDING THE LEGENDARY MILLER DYNASTY DX, AND OTHER TIG INVERTERS DOMESTIC OR IMPORTED. HIGH QUALITY EUROPEAN INFINEON IGBT MODULES PROVIDE THE ROBUST HEART OF THIS MACHINE, AND GIVE OVER TWICE THE DUTY CYCLE OF THE DYNASTY, MAKING THIS UNIT A FULL TIME PERFORMER AS OPPOSED TO A PINCH HITTER. I HAVE USED A DYNASTY ON THE JOB AND WOULD NOT TAKE ONE IF YOU GAVE IT TO ME, IT'S OVERPRICED AND PERFORMS POORLY, PERIOD.
THIS IS A INDUSTRIAL QUALITY, BILLET STRENGTH, MACHINE SUITED FOR THE SHOP FLOOR AS WELL AS THE HOBBYIST WORKSHOP, HAVING EXCLUSIVE FEATURES AS HIGH 250hz. AC FREQUENCY, OPTIONAL FOOT OR PANEL CONTROL SELECTION, DETACHABLE TORCH TRIGGER, 250 AMP FLEXHEAD GAS COOLED TORCH, STANDARD AWG GAS INPUT CONNECTOR AND SUPPLY HOSE, AND HIGH QUALITY USA MANUFACTURED FOOT PEDAL. NOW INCLUDED OUR EXCLUSIVE "FINEAMP" MODULE, WHICH LETS YOU PRECISELY ADJUST THE MAXIMUM CURRENT WITH THE FOOT PEDAL "FLOORED", GO AS LOW AS 5 AMPS DC AND 15 AMPS AC! ONLY WE OFFER THESE USEFUL QUALITY UPGRADES TO HELP YOU GET THE MOST FROM THIS EXCELLENT UNIT.
COMPLETELY ADJUSTABLE WELDING PARAMETERS UTILIZING EASY TO USE ANALOG CONTROLS MAKE THIS MACHINE A PLEASURE TO USE AND READY TO TACKLE ADVANCED TIG WELDING IN STEEL OR ALLOY MATERIALS.

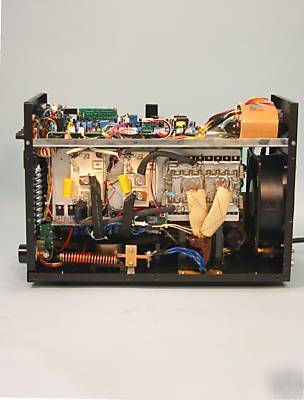

EVERY MACHINE RECEIVES A FULL COVERS OFF IN HOUSE QUALITY CHECK, AS WELL AS A POWERED UP COMPLETE WELD TEST REGIMENT AND IS COVERED BY A NO HASSLE
3 YEAR WARRANTY. NO ONE ELSE INVESTS THE TIME THAT WE DO IN QUALITY CONTROL, TESTING, AND SAFE, SECURE PACKAGING.
THE TYPE AND RANGE OF ADJUSTMENT FOLLOW:
1)Base Amp Range: (tig / stick): 5-200A / 10-160A
2)Pulse Amp range: (tig): 5-200A
3)Pulse Frequency: (How many pulses per second): 0.5-25 (hz.)
4)Pulse Width: (The ratio of the pulse current time to the constant base current):10%-90%
5)AC Frequency: (How fast the AC square-wave changes polarity each second): 50-250 (hz.)
6)AC Balance: (Oxide removal/ electrode positive vs. penetration/ electrode negative): 30%-70%
7)Gas Post Flow: (How long shielding gas continues to flow after welding ceases): 1-25 (sec.)
8)Downslope Time: (Crater fill time for weld current to go to zero when using trigger switch) 0-10 (sec.)
9)Trigger Latch Modes: (Operating mode of trigger switch): 2T/ on-off, 4T/ on-lock-off
10)Remote modes: (selection of operating control): Panel/ trigger switch, Remote/ foot pedal
11)TIG welding modes: AC, DC, AC pulse, DC pulse
12)Basic Welding Modes: tig/ stick
13)Arc force adjustment for stick welding
THE BENEFITS OF THESE CONTROLS FOLLOW:
You can weld steel, stainless, aluminum, copper, brass, etc.
Extremely thin material is easily conquered using the pulse functions.
High frequency square wave weld current allows use of pointed tungstens even in AC delivering control and stability previously unavailable.
Adjustable AC frequency allows increased penetration, or broad weld zone.
Adjustable AC balance allows optimum ratio of cleaning to penetration when welding alloy.
Selection of torch trigger control allows easy welding on the run, and while maneuvering tight workspaces or climbing.
GENERAL SPECIFICATIONS FOLLOW:
1)Duty Cycle @ 40 deg. cel. : (percentage of a 10 minute cycle that continuous welding is possible at a specific amperage and temperature): % / Welding Mode/ Welding Current
100%/ TIG /160, 60% /TIG/ 200 100%/ STICK/100, 60%/ STICK/ 130, 35%/ STICK 160
HIGHER DUTY CYCLE AND HIGHER AMPERAGE WELD CURRENT MACHINES ARE AVAILABLE, PLEASE ENQUIRE.
2)Input Current: 220-240 Volts single phase @ 20 amps
3)Maximum material thickness: (dependent on weldment mass, joint preparation, AC frequency setting, and pre-heating temprature if appropriate): 3/8"

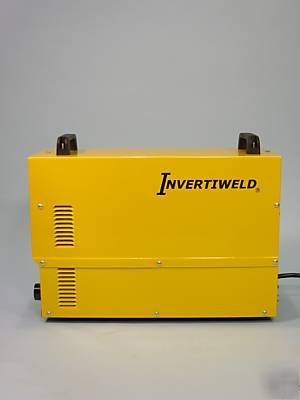

4) Size/ Weight: 20"X9"X15"/ 75lbs.
The compact size and low weight allow easy set-up and re-positioning of the welder on-site if required. Low current requirements eliminate the necessity of a special heavy main circuit, and allow the use of moderately sized, low cost, and maneuverable extension cables if necessary. High duty cycle gives maximum time welding, allowing for maximum productivity.
STANDARD INCLUDED ACCESSORIES FOLLOW:

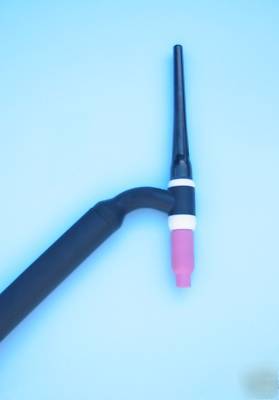

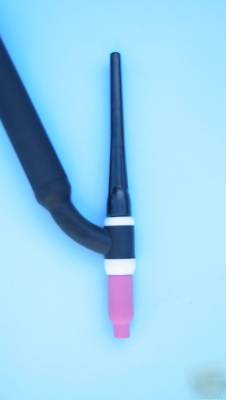

1) 12.5' 250 Amp gas cooled CKW/ WELDCRAFT FLEXHEAD style torch utilizing standard locally available parts.

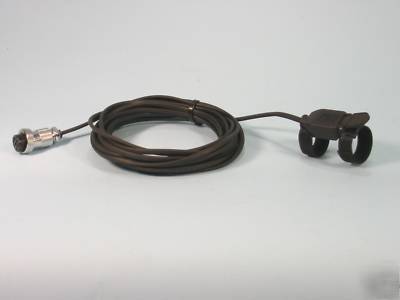

5) Detachable on/ off trigger for torch w/ velcro straps.

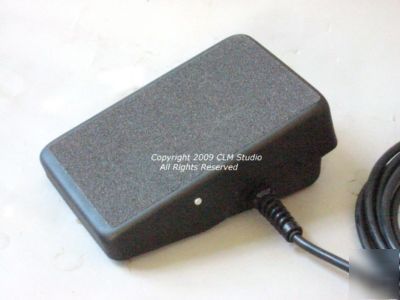

6) Patented USA mfg. HIGH SENSITIVITY foot pedal, same as supplied with Lincoln and ESAB welders.

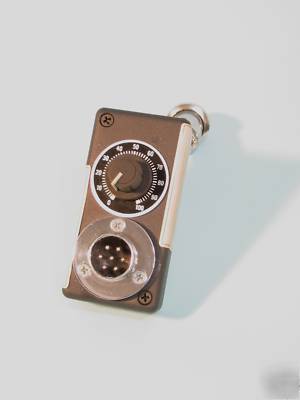

7) Exclusive "FINEAMP" PEDAL CONTROL, which lets you precisely adjust maximum foot pedal amps from 5 amps DC and 15 amps AC

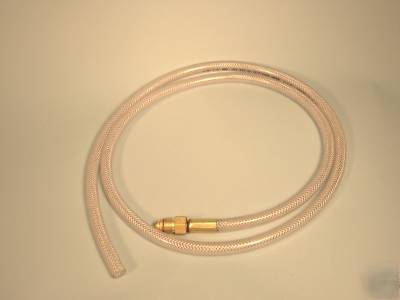

8) AWG gas input hose with brass connectors.
11) 3 year parts and labor warranty on welder, 1 year on foot control, 90 days other accessories.
12) Commitment to after sale support and service, with a "old school" personal style.
1.5% GOLD BAND LANTHIATED TUNGSTENS REQUIRED FOR PROPER AC PERFORMANCE
USE OF HIGH CELLULOSE STICK ELECTRODES AS 5P AND 6010 IS NOT POSSIBLE WITH THIS INVERTER,
SPECIALLY DESIGNED MACHINES ARE AVAILABLE FOR THIS STICK WELDING APPLICATION, PLEASE ENQUIRE.
WELDING GAS CYLINDER, GAS REGULATOR, ELECTRODES, AND PERSONAL WELDING ACCESSORIES, ARE NOT INCLUDED
