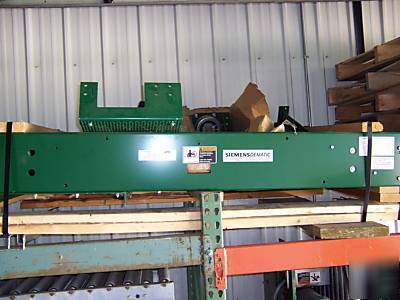

Rapistan 30" wide model #1265 accumulation conveyor
Rapistan Model #1265 Accumulation Conveyor 30" Overall Width 204 Foot Run With Drive
Operation: One way, horizontal, accumulation

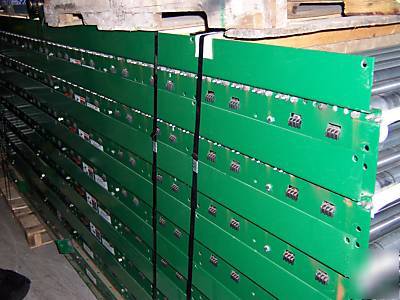

Beds: 10 Gauge, 6 7/16" Deep Side Channel w/ Bolted Contruction
Drive: 230-460 Volt 3 Phase Drive
Drive Pulley: Solid Steel in Diameter from 5 9/32" to 6 9/16" depending on speed
End Pulley: 5 1/2" Diameter at charge and discharge end

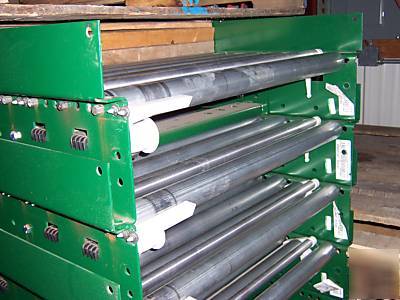

Rollers: 1.9" diameter 16 gauge galvanized steel with 7/16" hex axle with SR Bearings & 3" roller centers and rollers set high
Roller Safety: Finger Guard Strips Between Rollers
Belt: Flat 45 mm, 1.77" wide belt, with polyurethane body and Armin fiber reinforcement with anti-static nylon back
Capacity: 100 lbs. / per ft. maximum
Supports: 24" to 36" adjustable floor supports at each end and at bed joints.
Minimum Product Weight: With 3" roller c-c, 1 lb product with products at least 9 inches long.
Sensor Assembly: 7/8" dia. counter-weighted sensor roller supported by plastic arms that pivot on axle of carrier roller.
Guard Rail: Drive Bed has none and intermediate beds & discharge beds have 4" integral type guard rail (non removable ) Formed into the bed frame side channel.
Purchase Includes: Beds, Drive Unit, Belt, Supports, Splice Plates, Air Regulator & Assembly Hardware.
Questions: Call or email Tim Petersen (***)-218-5953
