Sine plate 4X6 precise ground 1/4"X20 xlnt no damage A2

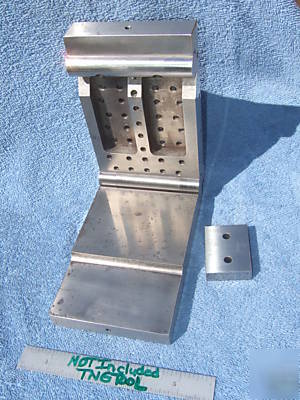

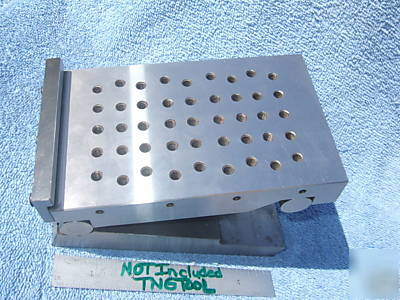

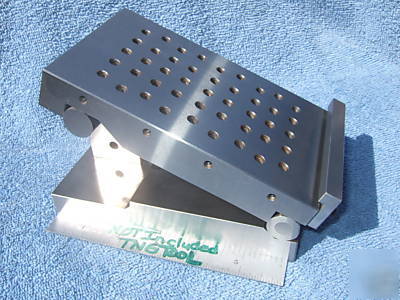

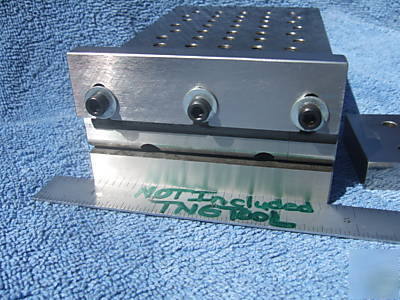

SINE PLATE SIMPLE HINGED TOOLMAKER MADE BY USA AMERICAN 35+ YEAR TOOLMAKER IN EXCELLENT USED CONDITION AS SHOWN IN SUPER-SIZE PICTURES. SEE PICS AND JUDGE FOR YOUR-SELF.
BASE IS 3-15/16" (3.930") WIDE X 6-3/8" (6.350") LONG AND IS 1" (.98") THICK WITH (1) TAPPED HOLE AT REAR FOR TENSIONER #10 X 32.
TOP PLATE MEASURES 3-15/16" (3.930") WIDE X 6-3/8" (6.350") LONG AND IS 1" (.967") THICK WITH (45) TAPPED 1/4" X 20 HOLES IN TOP FACE AND ANOTHER (12) TAPPED #10 X 32 IN SIDES AND ENDS AS SHOWN. NONE CHIPPED OR HAVE BROKEN BOLTS OR TAPS. SINE PLATE IS TOTALLY MADE FROM OIL-HARDENED TOOL STEEL. ONE RAIL IS ALSO INCLUDED AGAIN TOOL STEEL BUT A-2 AIR-HARDENED AND PRECISION GROUND.EDGES ARE PRECISION GROUND 45 * DEGREE CHAMFERED AS SHOWN. HINGED SIMPLE SINE PLATE 5.000" BETWEEN CENTERS
STORED ONLY IN A GERSTENR BOX . SEE PICS. (58 TOTAL ) TAPPED #10 X 32 AND 1/4" X 20 TAPPED HOLES SOME LIGHT STAINS ON INSIDE AND BOTTOM OF TOP PLATE OR MAYBE FROM BEING OIL-HARD? FROM STORAGE BUT NOTHING THAT AFFECTS USE OR ACCURACY OF THIS EXCELLENT WELL MADE SINE PLATE! I SEE NO FORMER OWNERS NAME STAMPED OR ENGRAVING INTO PLATE PRIOR TO HEAT-TREAT AND GRINDING.
I BOUGHT ALL HIS PLATES, ANGLE PLATES,MILL ANGLES SINE ANGLES AND MUCH MUCH MORE!!!! A COMPOUND IS ALSO LISTED AS ARE SLOTTED MODELS AND 3" X 6" MODELS. ATCO PRECISON TOOLS, BROWN&SHARPE, HERMANN SCHMIDT'S AND OF COURSE SOME OF THE NICEST TOOLMAKER MADE PLATES AVAILABLE ARE LISTED AND SOON OMER ROBBINS ALSO!
