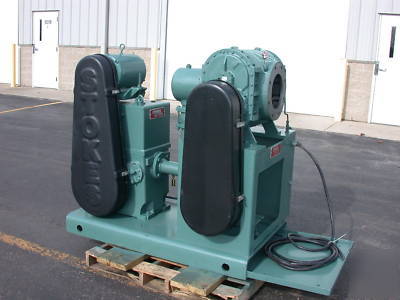

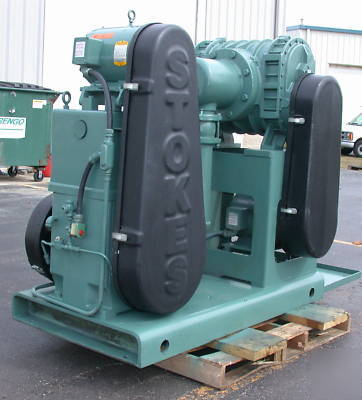

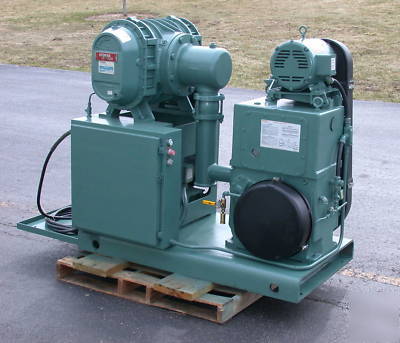

Stokes microvac 1721 vacuum system, low hours edwards
Stokes 1721 Multi-Stage Mechanical Vacuum Pump Save over 50% off Manufacturers Pricing
There are very few hours and very little wear on this system.
Upon inspection and clean up a couple of items were needed to restore the system to like new condition.
We replaced the bearings, valves, gaskets, o-rings, and gave it a fresh coat of paint.

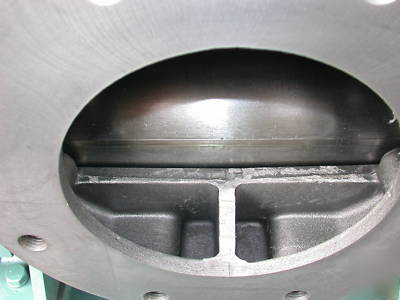

The internal parts for both pumps were spotless, pictures were taken and are avaliable upon request.

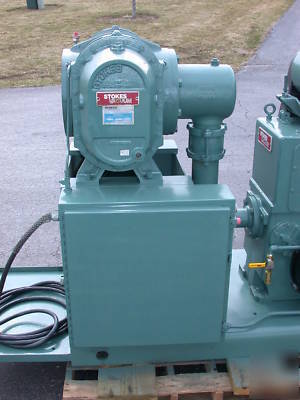

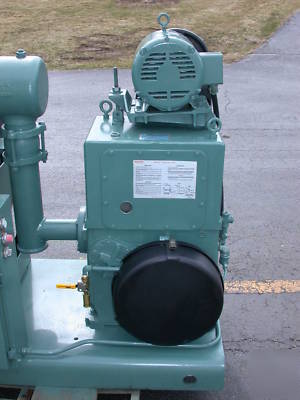

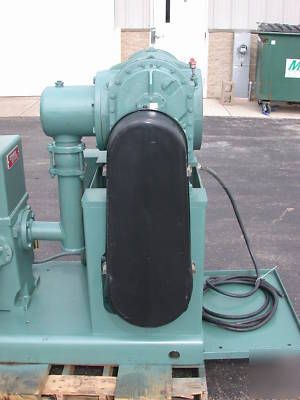

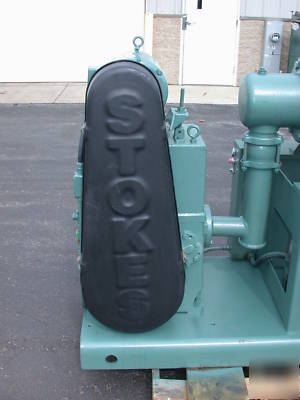

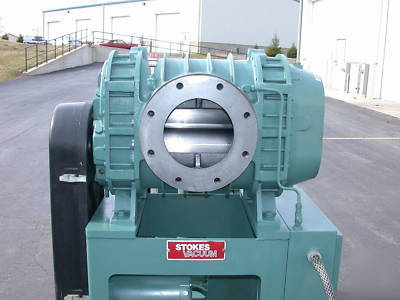

Complete with a Stokes 212H-11/ Rotary Piston Pump and a Stokes 615-1/ Mechanical Booster
212H-11 Pump displacement 150 ft3min-1/ 255m3h-1
1300 ft3min-1/ 2210 m3h-1, 1800 RPM, Horizontal Configuration
Pressure switch required Yes , Normal cut-in pressure 20 mbar / 15 Torr
Continuous operation pressure limit is 3 Torr/ 4 mbar
212H-11 and 615-1 motors are 5.6 kW / 7.5 hp
Inlet connections 8 inch ASA, ANSI Flange
Discharge connection 2 inch NPT
Water inlet and outlet connections 1/2 inch NPT, Recommended cooling flow @ 85 F / 30 C/ 5.7 l min
615-1 Booster oil capacity V lube H(Mobil DTE BB) 0.51 US gal, 212H-11 Microvac oil capacity V lube F(Mobil DTE Heavy) 4 US gal
Inlet height 1035 mm / 40.75 inch, Footprint (L x W x H)55.5 x inch 36.19 inch x 49.63 inch
Pump is for sale locally in the Midwest and may be sold at anytime. The base assembly can have a 412H-11 in place of the 212H-11.
