Teknic sst-1500 servo drive m-2330 stepper motor
Teknic SST-1500 Servo Drive M-2330 Stepper Motor
Use the links below to View More Images of the Teknic SST-1500 Servo Drive & Teknic M-2330-FX Motor

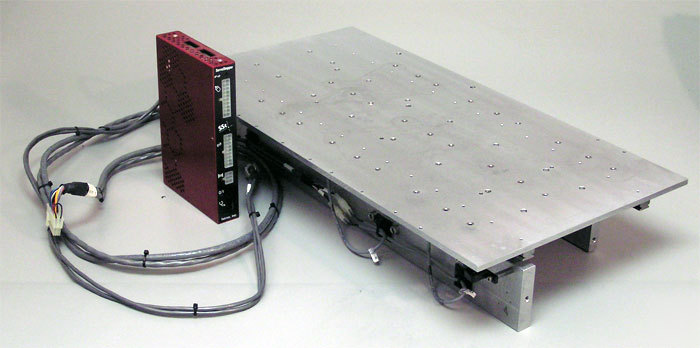

Teknic SST-1500 & Platform Front View
Teknic M-2330-FX Bottom View
Teknic SST-1500 Close Up View
Teknic M-2330-FX Brushless Motor 4000 Count's
Teknic M-2330-FX Brushless Motor
Platform Table w/ Indicator Travel's 39 inches
Teknic SST-1500 Digital Servo Drive Features
The SSt-1500 is a high bandwidth, digital vector servo drive. The seamless
integration of position, velocity, and torque loops enables this drive to provide
surprising performance enhancements.
For years, Teknic has proven the benefits of tightly integrating servo compensation
with torque control under the control of a dedicated DSP per axis. The latest in a
line of high performance drives, the SSt-U series advances the state of the art by
utilizing this topology in such a way to allow all information to be shared in real
time so all system functions cooperate in any situation. For example, if the torque
compensator and the system delivers a coordinated response, maintaining elegant
load control. The result is performance superior to other digital servo drives or
analog torque amplifiers. OEMs will realize tighter tracking, immediate settling,
and smooth motion - all of which yields superior machine throughput and
The 1500 has an open control interface and will work with almost any servo
controller or indexer with little to no software change. Moreover, it will elegantly
control permanent magnet servomotors from virtually any manufacturer.
Teknic M-2330-FX Brushless Servo Motor Rev (H) Features
The M-2330 is an instrument grade, brushless servo motor that is value engineered
to provide high performance and low cost in light to medium duty OEM
Because most applications do not involve harsh environmental conditions, Teknic
has removed the costly features that are beneficial in harsh environments but
unnecessarily add to the motor's cost for all other uses. In clean to moderately
dirty environments (semiconductor, medical, packaging, etc.), the M-2330 is
robust and exceptionally reliable. For example, the M-2330 servo motor has class
H winding insulation (rated to 155 C); the motor has oversized, single-row, deep
groove radial bearings held to 15 millionths of an inch tolerance; the magnets are
rare-earth; the encoder is shatterproof; and the entire motor line has been
carefully refined to provide outstanding field reliability.
* Teknic M-2330-FX Is Connected To The Platform Table w/ Indicator
