Ttc acterna t-berd 211 t-carrier analyzer

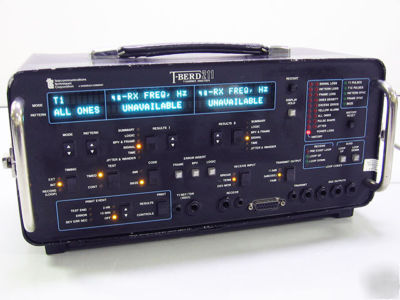

TTC ACTERNA T-BERD 211 T-CARRIER ANALYZER
This has the following features:
* Automatic configuration and results summary
* Automated sequences of test patterns for one-step circuit qualification and stress tests
* Pulse shape analysis, signal level and frequency, simplex current, and wander measurements
* Out-of-band ESF loop codes standard
* Wideband and high band jitter measurement
* Input and Output Connectors: Bantam, WECO 310, 15-pin D, BNC
* Bridge: 1000 ohms with ALBO
* Term: 100 ohms with ALBO
* DSX-MON: 100 ohms with AGC
* Bridge or term: +6 dBdsx to -35 dBdsx (T1), +3 dBdsx to -6 dBdsx (T1C)
* DSX-MON: +6 dBdsx to -24 dBdsx (T1), +3 dBdsx to -24 dBdsx (T1C)
* Level Measurement: +6 dBdsx to -40 dBdsx; +6 to -6, 0.1 dB resolution; -6 to -40, 0.5 dB resolution
* Frequency Measurement: 1 Hz resolutions; 5 ppm accuracy
* Transmit Timing Sources: Internal Clock, External Clock, Reference Clock, Recovered Clock
* Loopback Codes: CSU, CSU Line (ESF), CSU Payload (ESF), NIU (FAC1, FAC2, FAC3), NIU Network (ESF), Programmable (3 to 8 bits), Intelligent Repeaters
* Pulse Masks: CB 119 (ANSI T1.102), ANSI T1.403-1989
* Wander Measurement: +99999 UI, 1 UI resolution
* Power Requirements: 115 VAC 10%, 50 to 60 Hz
