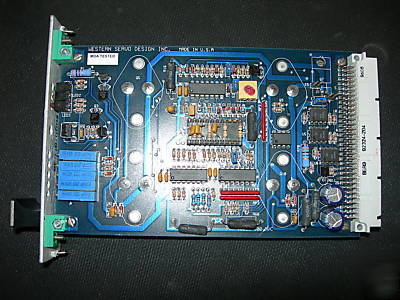

Western servo design ldu-S1-4/5
The LDU-S1 has simple potentiometer adjustments for Signal Gain, Tachometer Gain, System Response, Balance, and Current Limit and a plug in Personality Component Carrier to allow customized component changes for the peak current and loop compensation parameters. The unit includes an Amp Enable input and enabled indicator LED. The amplifier also has over current limiting and RMS current shutdown circuitry. The LDU-S1 has numerous advantages over PWM type amplifiers including minimum motor heating, increased brush life and the ability to drive zero inductance loads.
* Torque/Velocity Mode Jumper Selected
* Can Accept Tachometer Input in Velocity Mode
* Over Current Bus Protection
* RMS Current Shutdown with Amp Fault Output and Indicator LEDs
* Amp Fault Reset Switch and Reset Input
* Amp Enable Input and Indicator LED
* Drives Zero or Low Inductance Loads
* Can be Powered from Uni-polar or Bi-polar Bus Supply alone
* Continuous Current: 2 or 5 Amperes
* Excellent for use with Precision Positioning Systems
* Designed for Brushed DC Motors
* Advanced Design, high Quality and High Reliability at a Lower Cost
Specifications:http:// /ldu-s1.htm (bottom of the page) Retail: $500 (used)
The unit only, no software or other accessories.
Item is out of a working machine / system pull
The item is used but in excellent condition.
