Amulet mk-GT380B 3.8" qvga lcd touch display control

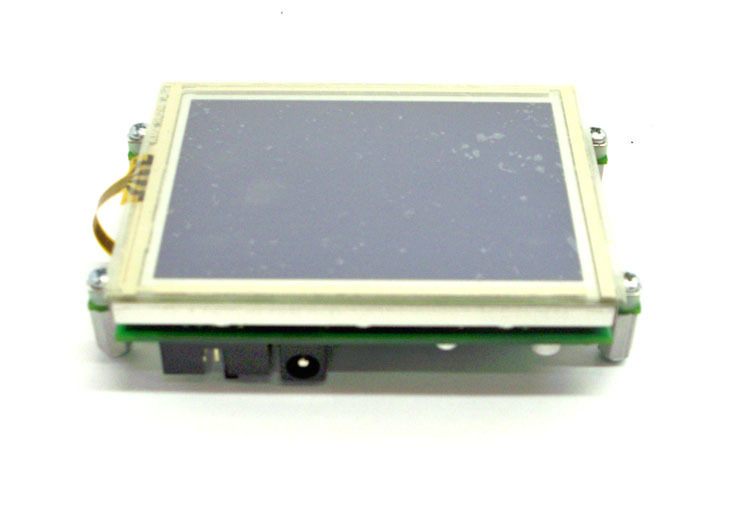

Amulet MK-GT380B 3.8" QVGA LCD Touch Display Control
The MK-GT380B module includes a 3.8 STN Blue Negative (Transmissive) QVGA monochrome display with six ultrabright LED backlights, a fully integrated analog touch panel, and integrated Amulet Controller Board. Added to the controller board is a 4megabit serial data flash chip to store HTML pages, and digital potentiometers to control the backlight and contrast through the GUI.
LCD : Chip-on-glass, 3.48" x 2.72" (3.8" diagonal); 320 x 240, monochrome, black on white; viewable area 3.14" x 2.39" (76.79 x 57.59mm)
Touch Screen : 4-wire resistive analog; active area is 80 x 62mm; utilizes full 320 x 240.
NOTE: Since the touch screen is touch activated, do NOT allow your mounting hardware to apply any compression forces inside the active area!
Backlight : LED Rimshot, always ON adjustable brightness.
Operating Temp .: -10 to 60 C; rh>65% non-condensing
Power : 5 to 10 VDC @100mA (9-volt battery and adapter supplied)
SRAM : 128k-Bytes Flash : One 128k-Bytes (64k-Bytes available)
Serial Port : One RS-232, 9-pin DIN, up to 115.2 Kbps
Dimensions (LxWxH): 3 x 4 x 1
