Fabco EZ1000-16.0-MH1-D1-J74B-RC02AB air linear slide
Fabco EZ1000-16.0-MH1-D1-J74B-RC02AB Air Linear Slide !

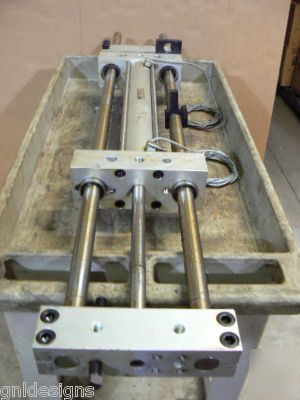

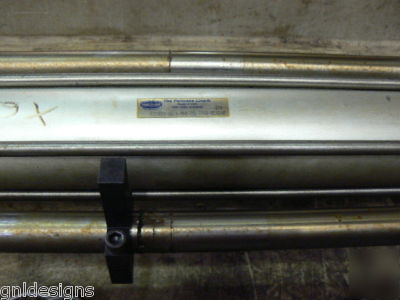

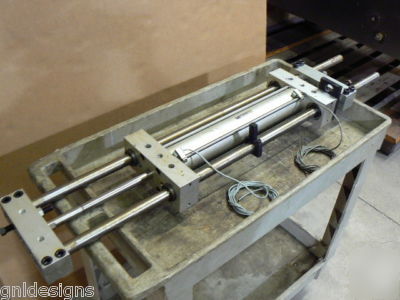

* Fabco EZ1000-16.0-MH1-D1-J74B-RC02AB Air Linear Slide
* CLICK HERE to see catalog (go to page 44)
* The catalog number noted above breaks down as follows:

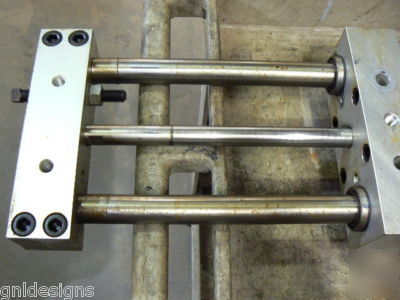

* EZ1000: model size 1000, 1" guide shaft diameter, 2-1/2" bore
* 16.0" stroke (adjustable down to 0" by moving the ends in from the extreme ends)
* MH1: Thru Hole Mounting
* D1: Dowel hole and slot

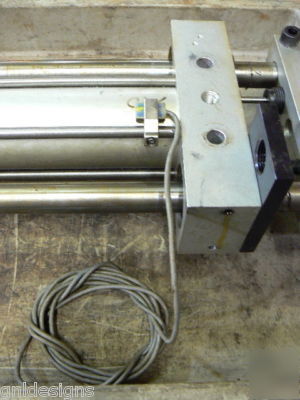

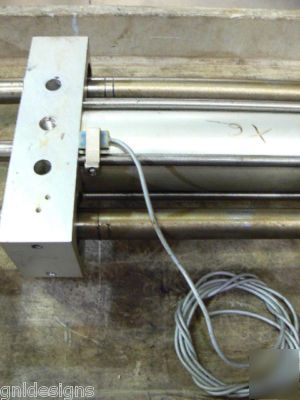

* J74B: Magnetic position and clamp-on sensors on both extend and retract

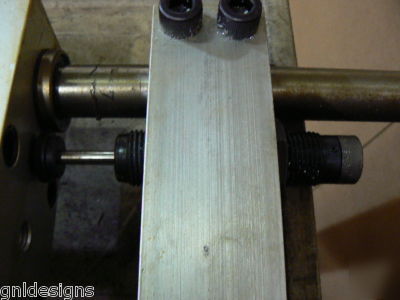

* RC: Rear clampbar (I'm not sure that part is still there, so take a look at the pictures and the catalog accessed through the link above)

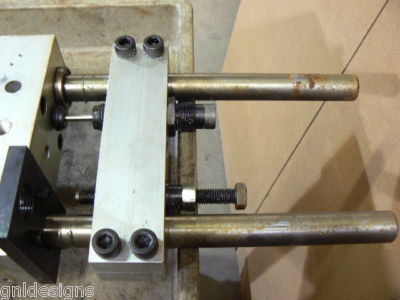

* 02: Threaded rod with retract flange nut and an extend stop bolt
* AB: Ace shocks, standard location
* Removed from a working machine. Bench tested good. Minor cosmetic marks and oily residue from prior use in a machine tool plant.
