Follet ice and 8 station drink dispenser unit
Our Asset #:KSC336 - 143 Qty available:1

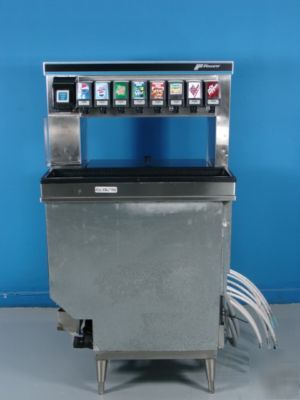

Follet Ice and 8 station drink dispenser unit
Condition: Used WORKING WHEN REMOVED FROM SERVICE Guaranty: See our 7 day DOA Guaranty!
Model: u150b Serial #: uapo Year: unknown
HP/Amp/KW/KVA:60 KW Voltage: 115 Phase: Na Other Info: Na
King Surplus is not making any representations, warranty of merchantability or any implied warranty of fitness for a particular purpose. For reference only:Lowprofile Ice & Beverage Dispenser - 8 Valve Drink Rail w/QuickCarb Manifold
High-capacity ice and beverage dispensers with undercounter ice storage, beverage rail and 8 valves. With integral ice water bath beverage cooling and cold carbonation. Standard equipment includes 6" to 9" (153 to 229mm) adjustable legs for undercounter dispenser support.
Attractive, low-profile design
- Compact dispenser with undercounter storage extends only 22" (559mm) above counter
- Allows use in islands without restricting visibility
- Contemporary graphics and neutral colors blend into any decor
- Fits into ADA-compliant 34" counter
Faster, safer loading of ice at waist height
- Safe, easy waist-height loading front or rear
- Eliminates overhead lifting of buckets or loading from ladders
- Allows quick reloading during serving period with minimum disruption
Added flexibility to meet varied needs
- Left or right hand dispense chute to match traffic
- Reliably dispenses most cubelet ice up to 1" (26mm) square and Follett s Chewblet ice
- Choice of push-button or lever ice and beverage actuation
- Keyswitch for valves standard
- Exclusive QuickCarb beverage manifold center 4 valves are pre-plumbed to both carbonated and non-carbonated water lines. Valves can be individually changed from carbonated to non-carbonated flavor with the flip of a lever.
Industry s only integral ice water bath with cold carbonation
- Consistent carbonation levels for bottled quality beverages
- Excellent casual drink performance
- No separate carbonator saves space
- Maximum Capacity: 150 lbs of Ice
- Electrical Specs: 115V, 60 Hz, single phase, 8.7 amps
- Support all dispensers from below on channels or with supplied leg accessory
- 3/4" PVC pipe nipple for bin drain and drain pan drain, 1" ID hose for beverage bath drain (do not tie drains together)
- 3/8" 45 flair fitting for carbonator pump water inlet connection (3/8" barbed fitting supplied), 1/4" ID CO2
- CO2 pressure 75 psi, syrup pressure 60 psi, water pressure 50 psi
- 51" (1295mm) minimum above counter for installation if dispenser will be dropped into counter
- 36" (915mm) minimum above counter for auger removal
Length: 58" Width: 31" Height: 26"
a. Est. Wt. each: 259LBS b. Est. pkging wt: 30 c. Est. total wt: 289
