> RK124AT-001-A2 compressor tecmuseh RK124AT001A2 hp 3/4
RK124AT-001-A2 compressor tecmuseh RK124AT001A2 hp 3/4

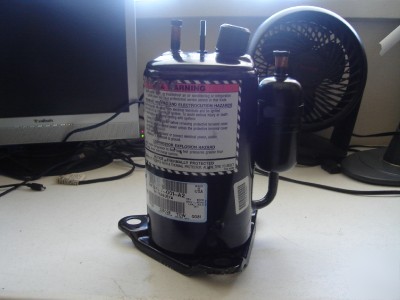

RK124AT-001-A2 Compressor Tecmuseh RK124AT001A2 HP 3/4
One of the nozzles on the product is pinched, but looks fixable.
Designed for R22, air conditioning applications
Replaces rotary compressors commonly found in window air conditioners
Run capacitor required but not supplied
Mount is triangular on listed centers
Capacity rated: 45 F evaporator; 130 F condensing
Connection Discharge (In.): 5/16
Engineered Items: Yes Oil_short: AB
Run Capacitor (Microfarad x Voltage): 25x370
Torque: Normal: suitable for capillary tube and other self equalizing systems
Vendor: Tecumseh Products Company
Replaces Compressor Part Numbers:
05508006 P033-0904 P033-0901 GF05DA001 GF15EA001 P031-0911 05505007 RKA5490EXA RK124AT-001-S7Y 2P14S3R126B P034-0901 105-69 P031-0901 RK124AT-001 P033-0901 P033-0903 P033-0904 P033-0905 ERH88XA4-1K P035-0901 RK124AT-020 2P14C3R126A 7002137 2P14S126B 2P14S3R126B 513014840 67281203 ACH29X1U 5505007 RK5490E ABA090111A GF05DA001 ABA090111C EAA090111A EBA095111H D9940203 ACH28X1U 68480403 GF02DA011 GF15EA001 61086003 RG5492E RGA5492EXA RG171AT 1091567 615062802 D9831802 P0340901 10569 P0310901 RK124AT001 P0330901 P0330903 P0330904 P0330905 ERH88XA41K P0350901 RK124AT020 CARB81806 RKA5490EXA CARB81806 CAR6D641 CARRKA5490EXA
703-009A CG012-0 CW012-0 GT010-0 SL010-0 703009A CG0120 CW0120 GT0100 SL0100 TDLS1211C TDLS1211H TNLS1211C YNLS1211H 50KQA009110A 50KQD009110A 51AGA108101 51BTY108160 73UCB108111B 462AAC008BA 51AGA108111 51CMB109101B 51CMB109101K 51CMB109111K 51CVA209100B 38AN009101 538CAX009000BAAA 38BK009101 538DAX009000BAAA 38BK009111 538DAX009000BBAA 38BK009121 P6968306R P1177804R P1177805R 51CMA109101B P6968311R P1177804R P1177805R P1114205R P1203103R P1212702R P1214701R P9931518R P9931521R P1162106R P1203004R P1184101R P1184103R P1167502R P1184003R RC09090A1D RC09090A1DR RC10010C1D RC10010C1DR RC10090A1D RC10090A1X RC10091A1D RC10091A1DR RC10091A1E RC10091A1X 52BHA009101AA 52BHA009101CC
Used in Carrier Air Conditioning Models:
81ATX708161H 50KQA009110A 50KQA009120A 77ATA008100 77ATB008100 73UCB108111B 71AGA108101 50KQD009110A 50KQD009120A
