Tektronix 336A digital storage oscilloscope

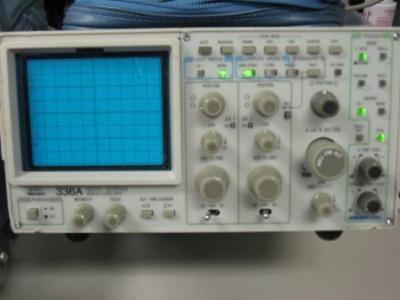

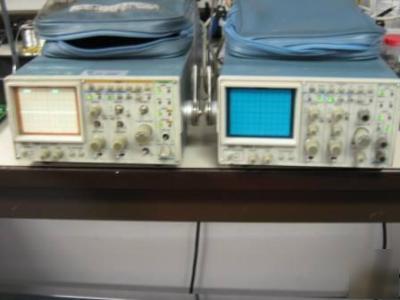

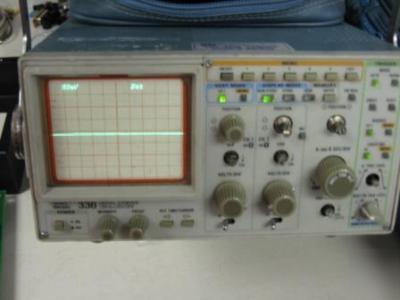

Tektronix 336A Digital Storage Oscilloscope
The Sony/Tektronix 336A is a compact, portable, multifunction, combination nonstorage and digital storage oscilloscope. Digitized waveform can be stored and later recalled. The 336A is controlled by a microprocessor and provides crt readouts of the vertical and horizontal scale factors, the delay time position, and voltage and time readouts of the cursor positions. Many of the oscilloscope features and modes are selected from sub-menus displayed on the crt by using the front panel switches.
The 336A has a dual-channel, dc-to-50 MHz vertical deflection system for both nonstorage and equivalent- time digitizing. Storage bandwidth for single-sweep events (waveforms acquired as the result of a single triggering event) is dc to 2.8MHz. The vertical channels have calibrated deflection factors from 5 mV to 10 V per division.
