12 volt d.c. 250 rpm gear motors (qty. 10) feeder/hobby

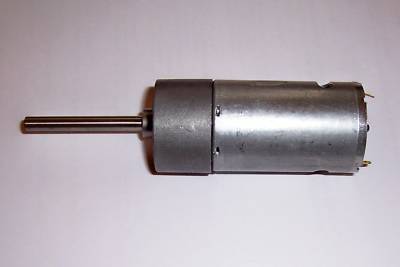

We have for sale ten (10) NEW all steel 250 RPM Gear Motors that will operate from a 6 to 12 Volt D.C supply. (Battery or power supply) These motors have a 6.0 mm (.236") output shaft that is app. 1-7/8 inches long with a 5.5mm "D" Flat the full length of the shaft to secure the load to the steel shaft.
The output turns at app. 250 RPM with 12 volts supplied and produces more than 20 KG/CM of torque. A 6 Volt supply will turn the shaft at app. 125 RPM and produce app. 10 KG/CM of torque.
The gear motor (excluding the shaft) is app. 3-1/8" long with a diameter of app.1-1/2". There are two brass solder terminals on the rear of the motor. The TOTAL length of this item including output shaft, gear motor and terminals is app. 5-1/2" long. The direction of the output can be reversed simply by changin polarity of the power to the terminals.
The motor has six (6) tapped 6mm screw holes on the shaft end for mounting. This unit can be used for automatic (deer, turkey) feeders, hobby items, etc.
