Aerial film dryer zeiss for aerial camera
Aerial Roll Film Dryer * pellicule s cheur * Luftbild FILM
pel cula desecador * Filmes secador *

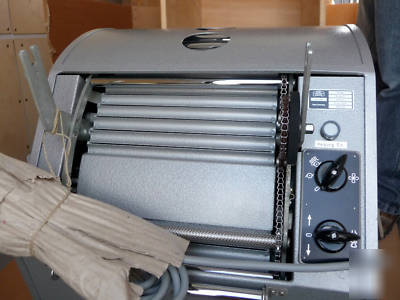

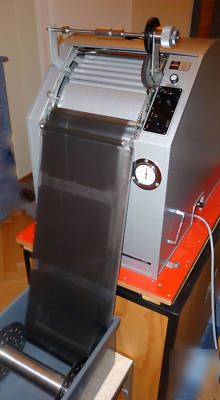

This is an film dryer machine made typical for aerial film rolls processed in rewind mode.
Machine was made by Carl Zeiss Oberkochen, the leader in aerial film cameras (RMKa, RMK TOP, DMC) & processing equipment
It works also for 70 mm up 240 mm (9 inch) standard aerial format and everything between.
It is designed for fast drying of b/w and color negative or slide film.
The machiine is in excellent, factory new conditions and was never used in production.
This system is essentially "field-ready".
* Factory new, never used, 0 operating hours
* Made in Germany by Carl Zeiss (Oberkochen)

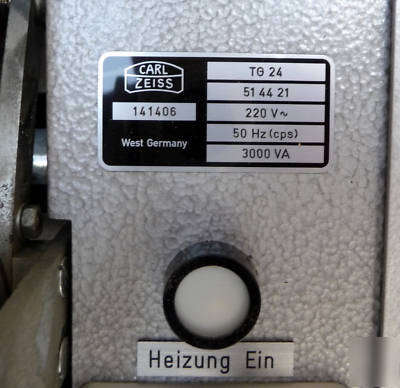

* TG24 aerial rollfilm dryer assembly, P/N 514421-0000
* Radial air principle for aerial films

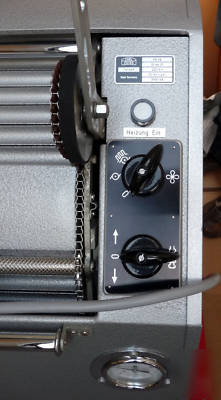

* automatic Thermostat and temperature selection/control
* film format 70 240 mm up to 152 meter roll
* (2,776 9,5 inch up to 500 feet)
* film transport speed 16 162 meter per hour (52 ft ....530 ft per hour)
The dryer will be delivered in its original wooden transport box, which is also designed at stand, so no table is required and makes it also very comfortable to transport it to another location.
Machine comes with all cables & transport box, assembly stand, dust cover and operators manual and is ready to use.
This latest generation of TG 24 aerial film dryers was made by using stainless steel rollers instead of using the wooden rollers.
If you need more information and pictures, please do not hesitate to ask for additional information.
120x83x80 cm, Weight is 120 kg. - 47.5 x 32.6 x 31.5 inch. Weight is 265 lbs.
It's heavy, but Zeiss and therefore it must be heavy to be reliable.
We will quote freight upon request or you can collect.
Thank you for looking! Enjoy your shopping & drying.
