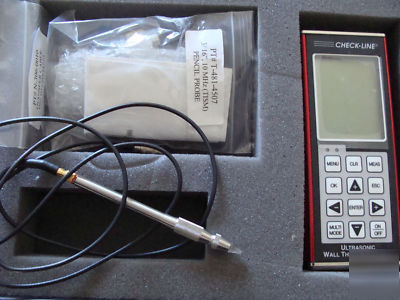

Check-line ti-pvx ultrasonic wall thickness gauge used
Precision Ultrasonic A-scan Thickness Gauge

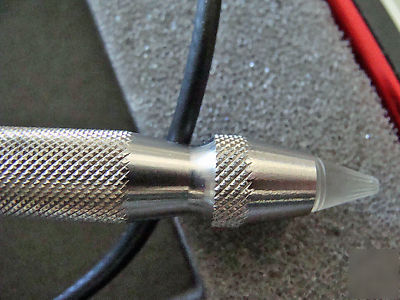

It's ability to use a variety of single element transducers for specific applications: Standard Delay Line (acrylic and graphite tips for metals and thin plastics), Pencil Delay Line (tough access area on thin materials), and Contact transducers (variety of applications) makes it the perfect flexibel tool for very precise and delicate measurements. The adjustable resolution settings add to the PVX s flexibilty.
The selectable viewing options provide the user with additional flexibility during operation: (RF waveform, +/- Rectified waveform, and Large Digits with Scan Bar.
The time based B-Scan feature displays a cross section of the test material. Displays the profile of the opposite surface of the material.
The high speed scan feature speeds up the inspection process by making 32 measurements per second. Remove transducer from the test material and display the minimum measurement scanned.
bluedot Hardware AGC gain control for multiple echo and thru-paint measurement.
bluedot Multiple calibration options: One Point, Two Point, or selection from a Material List.
bluedot PVX is equipped with an alpha-numeric data logger to provide increased versatility for those custom reporting needs.
bluedot The high speed scan feature
bluedot Auto find features locates the detection point(s) and adjusts the display settings to bring the waveform into view.
Interface-Echo Mode: Steel 0.05 1.0 in (1.27mm - 25.4mm). Plastics from .005in. (127mm).
Echo-Echo Mode: Steel .006in -.500in (.15mm - 12.7mm).
Pulse-Echo Contact Mode: Steel .040in - 10.0in (1mm - 254mm). Plastics from .010in (.254mm).
Echo-Echo Contact mode: Steel thru-paint .100in - 3.0in (2.54mm - 76.2mm).
(selectable) +/- .001in (0.01 mm), or +/- .0001in - (.001mm).
12,000 readings and waveforms (alpha numeric storage).
A-Scan Rectified +/- (half wave view) RF (full waveform view)
B-Scan Time based cross section view. Display speed of 15 secs per screen.
Large Digits Standard thickness view. Digit Height: 0.400 in (10mm).
Scan Bar 6 readings per second. Viewable in B-Scan and Large Digit views.
Repeatability Bar Graph Bar graph indicates stability of reading.
Three 1.5V alkaline or 1.2V NiCad AA cells
Typically operates for 150 hours on alkaline and 100 hours on NiCad
2.5 W x 6.5 H x 1.24 D inches (63.5 W x 165 H x 31.5 D mm).
bluedot PVX comes complete with Windows PC software for transferring data to and from a PC.
bluedot User-selected resolution of 0.001" or 0.0001" inch units and 0.01 or 0.001 in mm units
bluedot Visual and audible alarm with hi and lo limit settings for specific application tolerances.
bluedot 1/4" 15MHz Delay Line Probe p/n T-481-5507 also available when pencil probe is not needed. Specify TI-PVX-5507 to order as complete kit with this probe
bluedot Includes NIST-Traceableb calibration certificate
