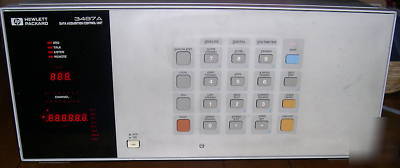

Hewlett packard hp 3497A switch/control unit
This is a used HP3947 data acquisition/control unit. The only tests performed was power up and to verify that it passes self tests.
the HP 3947A Data Acquisition/Control Unit combines the capabilities of several instruments and is a basic building block of an automatic data acquisition and control system. The 3497A will be used in an HP-IB automated system and can be viewed as a precision measurement and control computer peripheral.
The 3947A has been designed to be a very versatile and very powerful instrument. A basic 3947A consists of a mainframe that includes a front panel keyboard and display, a non-volatile real time clock, and an HP-IB interface. Available as an option is a 5 1/2 digit integrating digital voltmeter and current source that occupies a dedicated slot in the 3497A chassis. Capability is added to the 3497A by using any combination of plug-in assemblies. Available plug-in assemblies are:
* Relay Multiplexers with or without thermocouple compensation
* Strain gage/bridge completion
* Programmable voltage and current D/As
Up to 5 assemblies can be added to a 3497A and the 3498A. Extender chassis can hold up to 10 more plug-in assemblies.
The 3497A DVM can resolve 1 microvolt signals and is ideal for the precise measurement of the outputs of thermocouples, strain gauges and other transducers. Included on the DVM is a programmable current source that allows four-terminal resistance measurements. The multiplexer assemblies switch 3 wires (Hi, Lo, and Guard) and add less than 2 microvolts of thermal offset to the measurement signal.
Flexible Hardware Configuration
The 3497A card cage can hold 5 of any combination of the plug-in assemblies. This allows the multiplexing of up to 100 3-wire inputs to the DVM in a single 3497A or a single 3497A might contain 60 multiplexer channels, 16 digital inputs, 16 actuator outputs, and a DVM. By using the 3498A Extenders, up to 1000 analog channels or 1360 digital channels can be controlled, all at a single bus address.
The 3497A keyboard and display make the 3497A a very easy to use and make debugging of a 3497A based system easy. The calibration adjustments for the 3497A DVM are located behind a hinged front panel; this allows complete calibration of the DVM without removing it from the test rack. Connections to all of the 3497A assemblies are made using screw terminals, eliminating the need for soldering.
The 3497A mainframe includes a quartz-referenced, non-volatile, real-time clock. In addition to providing timing data, the clock can measure elapsed time, interrupt at a presettable time, and output a programmable pulse train.
Month:Day:Hours:Minutes:Seconds (U.S. Format)
Day:Month:Hours:Minutes:Seconds (European Format)
* Option 001: 5 Digit DVM + Current Source
* Option 010: 20 Channel Relay Multiplexer
* Option 020: Relay Multiplexer with Thermocouple Compensation
* Option 030 - 20 Channel FET Multiplexer Assembly
* Option 050 - 16 Channel Isolated Digital Input/Interrupt
* Option 060 - 100 kHz Reciprocal Counter
* Option 070 - 120 Ohm Strain Gage/Bridge Completion Assembly
* Option 071 - 350 Ohm Strain Gage/Bridge Completion Assembly
* Option 110 - 16 Channel Actuator
* Option 115 - 8 Channel High Voltage Actuator
* Option 120 - Dual Voltage D/A
* Option 130 - Dual Current D/A
* Option 140 Breadboard Card
* Option 232 - RS232C Interface
* Option 298 - 3498 Extender
